HELUKABEL CABLE CONNECTOR FOR INDUSTRY
In electrical conduction systems, cable connectors are used to connect and transmit energy from the power source to the electrical equipment. The application of cable connectors in electrical installations will ensure more electrical safety than manual wiring, wrapping tape or substandard soldering.
At the same time, the cable connector is aesthetically pleasing and convenient in removing and repairing the cables in the system. Special cable connectors are used in many fields, from daily life to manufacturing industry, from small to large scale, using cable connectors when installing electrical systems.
In order to provide suitable, quality products for the project, we, HELUKABEL offer a wide portfolio of cable accessories with a wide range of HELUTEC® cable connectors.
Established in 1978, we, HELUKABEL have been providing products in the field of electrical connection including: control cables, signal cables, cable accessories, cable chains… Products The products and accessories we manufacture have all achieved German national certifications (VDE) and 16 other international certifications such as (UL, SEV, SEMKO, SGS, OVE, NEMKO, CSA, IMQ, BSI, CCC, DEMKO, CE, CEB, HAR, TUV, ...).
Please call
+84 28 77755578 or email us to
info@helukabel.com.vn or register for a consultation using the form below for a free consultation on control cables, signal cables… with an specialized engineer.
1. RJ45 copper connectors
Discover our products
2. M12 copper connectors
Discover our products

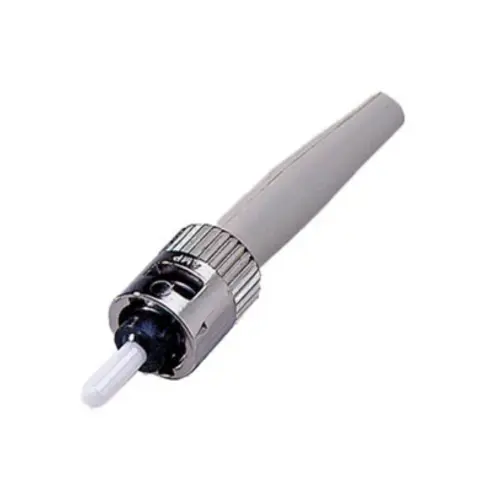

3. Fibre optic connectors
Discover our products

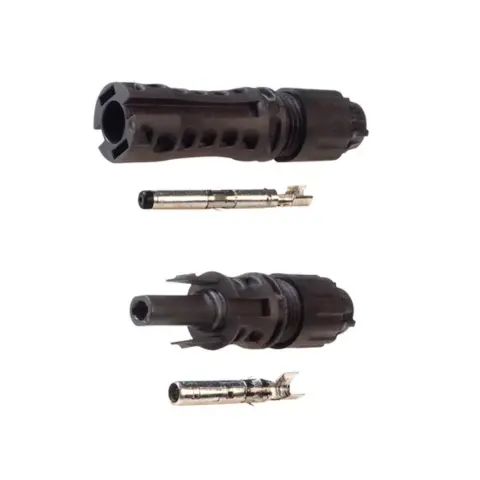

4. DC connectors
Discover our products
5. M8, M12 circular connectors
Discover our products
6. HELUTEC connector series 617 / 623 / 627
Discover our products
7. HELUTEC connectors series 917 / 923 / 932 / 940 / 958
Discover our products
8. HELUTEC connectors series 723
Discover our products
9. HELUTEC connectors series 615 / 915/ 926
Discover our productsGet a Quote & Expert Consultation

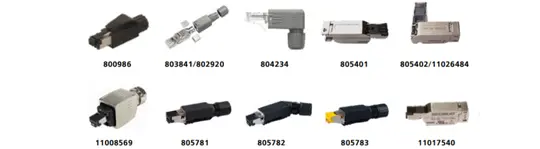

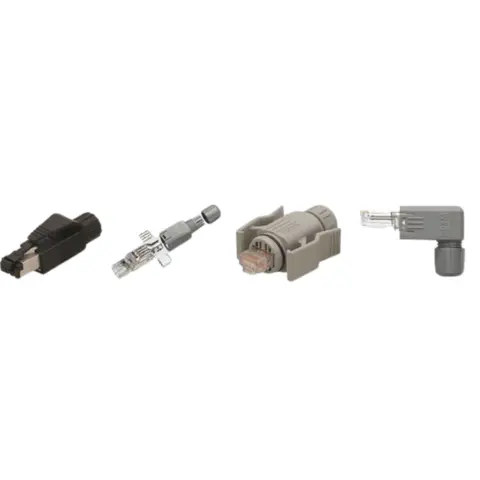

RJ 45 copper connectors
HELUKABEL offers a wide range of RJ45 network cable connectors with various design options, including straight connectors, angled connectors, and Push-Pull connectors. These connectors are compatible with standards such as PROFINET, TIA 568A, and TIA 568B.
| Part no. | Cat. | Connector | Pins | IP | Standard |
| 800986 | 5 | straight | 4 | IP20 | PROFInet |
| 802920 | straight | 8 | TIA 568 A/B | ||
| 804234 | angled 90° | TIA 568 A/B | |||
| 11017443 | angled 145° | 4 | PROFInet | ||
| 11008569 | PushPull straight, metal | IP67 | PROFInet | ||
| 11026484 | 6 | angled 90° | 8 | IP20 | PROFInet |
| 805783 | 6A | straight | TIA 568 A/B | ||
| 805784 | angled 45° | TIA 568 A/B | |||
| 804544 | straight, metal | TIA 568 A | |||
| 11017767 | 8 | straight | TIA 568 A/B |

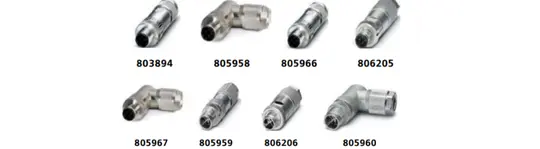

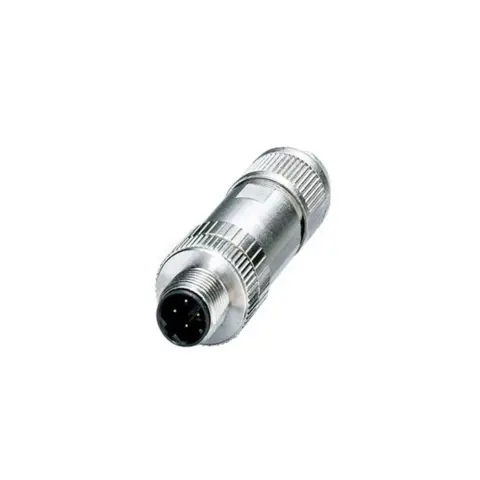

M12 copper connectors
In addition to M12 electrical cable connector products, HELUKABEL also offers pre-assembled copper cable solutions with M12 connectors:
- M12 – Male Connector IP67: M12D 180°, M12X 180°, M12D 90°, M12X 90°
- M12 – Female Connector IP67: M12D 180°, M12X 180°, M12D 90°, M12X 90°
| Part no. | Cat. | Connector | Pins | IP | Standard |
| 803894 | 5 D-coded | straight, metal | 4 | IP67 | |
| 805958 | angled 90°, metal | ||||
| 806205 | straight, metal | PROFInet | |||
| 805967 | angled 90°, metal | PROFInet | |||
| 805959 | 6A X-coded | straight, metal | 8 | ||
| 805960 | angled 90°, metal |

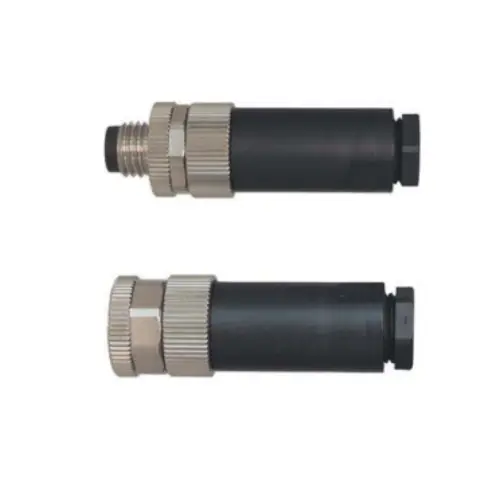

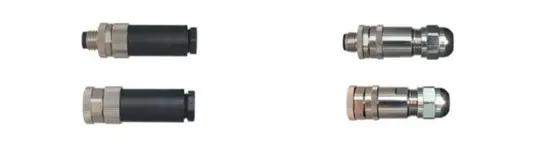

M8, M12 circular connectors
M8 and M12 circular connectors are used in factory automation, industrial machining centres and production lines. They are part of the control of sensors and actuators, other I/O devices and valve terminals.
Depending on the application, the connectors are available in A-coded versions with different numbers of poles. They are available as standard in a shielded metal version and an unshielded plastic version
Polyamide M8/M12 circular connectors
| Part no. | Profile | Pin | Cable-Ø from / to mm | Size TD | Length mm L |
| 11024556 | female | 3 | 3.50 - 4.80 | M8 | 40 |
| 11024558 | male | 3 | 45 | ||
| 11024559 | female | 4 | 40 | ||
| 11024557 | male | 4 | 45 | ||
| 11024546 | female | 5 | 4.00 - 6.00 | M12 | 53 |
| 11024554 | female | 8 | 4.00 - 6.00 | M12 | 53 |
M12 brass circular connectors
| Part no. | Profile | Pin | Cable-Ø from / to mm | Size TD | Length mm L |
| 11024548 | female | 5 | 4.00 - 6.00 | M12 | 56.5 |
| 11024552 | male | 5 | 62 | ||
| 11024553 | male | 5 | 6.00 - 8.00 | 62 | |
| 11024555 | female | 8 | 56.5 |

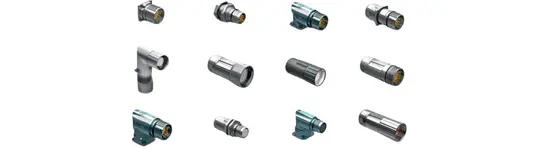

HELUTEC signal connectors - series 617/623/627
Stable, versatile, safe: HELUTEC® series can be found where a safe connection is required within a limited installation space. The plug connectors in the 617, 623 and 627 series are designed especially for extra-low voltages, and are used in any application that transmits signals, controls motors or monitors the smooth functioning of a system.
| Series | Plug | Cable Clamps | Insulation Inserts and Contacts |
| Series 617 |
| Built-in anti-twist & anti-interference protection |
|
| Series 623 |
|
|
|
| Series 627 |
|
|
|

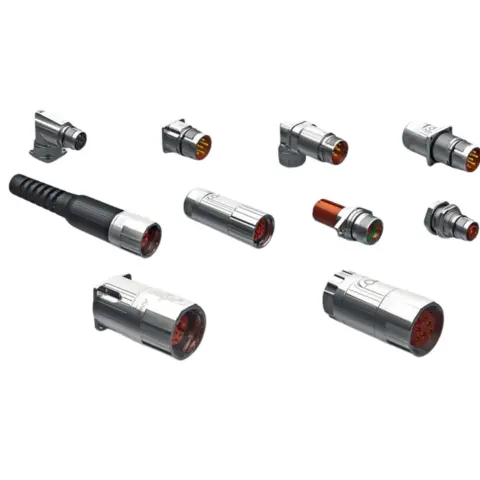

HELUTEC power plug connectors - series 917/923/932/940/958
Extremely resilient: HELUTEC® power plug connectors accelerate torque-heavy drive motors, spindle drives, and servo motors reliably up to the highest rotational speeds while tolerating millions of abrupt starts and stops. Voltages up to 630 V and currents of up to 200 A are transferred reliably even in continuous operation and under the most demanding conditions.
Cable cross sections of up to 50 mm² and the smallest possible designs are—depending on the application—part of the scope of delivery, along with perfect EMC shielding for maximum operational and workplace safety.
| Series | Plug | Cable Clamps | Insulation Inserts and Contacts |
| Series 917 |
| Built-in anti-twist & anti-interference protection |
|
| Series 923 |
|
|
|
| Series 940 |
|
|
|
| Series 958 |
|
| 8-pin |

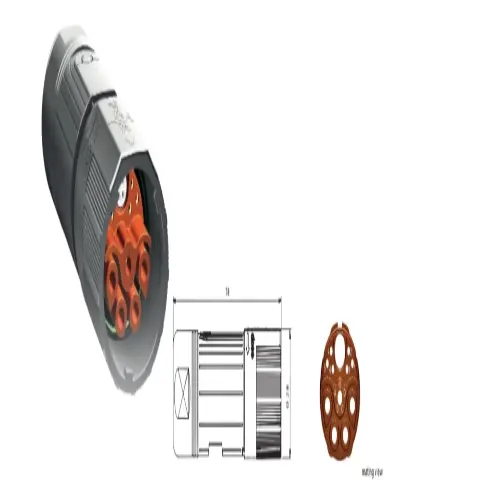

HELUTEC hybrid connector series 723
Full speed ahead - with six signal contacts plus one quadrax element.
The latter provides for fast Industrial Ethernet (CAT 5) connections in real time mode and opens completely new possibilities with its ready-to- assemble, separately shielded Ethernet element.
- Plug Speedtec: Nickel plated and Speedtec quick lock
- Cable Clamps: Built-in anti-twist & anti-interference protection
- Lamella clamp: Built-in anti-twist & anti-interference protection
- Insulation Inserts and Contacts: 11-pin male/female P Code 1

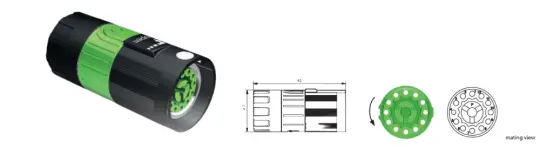

1. Series 615
HELUTEC connector series 615/915
Only one mounting hole is required to realize a combination of power and signal connection or power and bus connection on a small motor.
Mechanical as well as colour codings provide additional safety.
Except for crimping the system requires no special tools. In addition, the system remains 300° continuously rotatable after installation.
Thus it is perfectly suitable for miniaturized applications, where space is critical and room for cabling limited.
| Series | Plug | Cable Clamps | Insulation Inserts and Contacts |
| Series 615 | Cable connector with automatic keyring | Built-in anti-twist & anti-interference protection | 12-pin female |
| Series 915 |
| Built-in anti-twist & anti-interference protection |
|

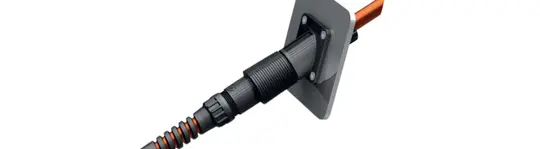

HELUTEC series 926 for stage and lightning
Thanks to its high protection classification of IP66/67 and with outstanding 630 V rated voltage and 66 A rated current while ready to take on 16 mm² wires.
Applications: Offshore and marine applications from oil rigs and wind turbines to any kind of seafaring vessel.
