HELUKABEL FIRE-RESISTANT CABLE FOR INDUSTRIES
Fire-resistant cables are widely applied in projects that demand strict safety standards such as high-end apartments, airports, resorts, or office buildings. Specifically, fire-resistant cables are installed in areas that require stable operation for a certain period of time even in the event of fire or explosion, such as emergency exit systems, main power systems, emergency lighting systems, and fire extinguishing systems.
Fire-resistant cables nowadays are designed with protective sheaths made of materials that produce little smoke, do not contain halogens, and do not produce toxic gases when burned. Improvements in upgrading the material of the protective outer layer of fire-resistant cables help minimize the process of producing toxic gases into the environment, causing pollution and directly affecting human health and life.
To ensure the highest quality and safety, fire-resistant cables need to meet many strict international standards. We, HELUKABEL, have been and are accompanying many large projects that require the installation of fire-resistant cables in countries around the world.
Call
+84 28 77755578 or email us at info@helukabel.com.vn or register for consultation via the form below to get free advice on various types of control cables, signal cables, etc. with specialized engineers.
1. Instrumentation fire-resistant cables
2. Fire-resistant optic cables
3. Fire-resistant control cables
4. Fire-resistant audio cables
5. Fire-resistant power cables
9. Other types of cables used in case of fire
Get a Quote & Expert Consultation
Features of some fire-resistant cables from HELUKABEL
1. Fire-resistant optic cables

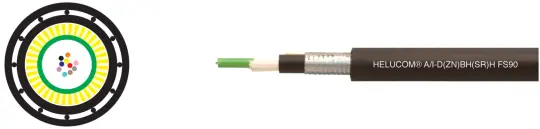

HELUCOM® A/I-D(ZN)BH(SR)H 4 E9/125 FS90 is a fire-resistant cable with a special structure, with the inner shell material made of FRNC and the cable sheath material made of FR/LSOH. To ensure fire resistance, the cable undergoes rigorous testing and meets the IEC 60331-25 standard to ensure the cable can operate stably for 90 minutes at temperatures up to 750 degrees Celsius.

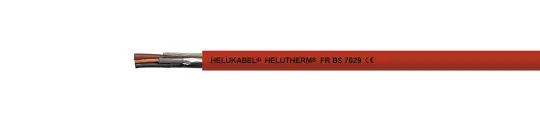

2. HELUTHERM® FR BS 7629 cables
HELUTHERM® FR BS 7629 is widely used in fire alarm or fire detection cable systems, emergency lighting systems in public buildings, office buildings, or places with high-value equipment. HELUTHERM FR® BS 7629 fire-resistant cable aims to ensure the safety of people working in areas with high risk of fire or explosion, while protecting valuables and equipment. The product complies with the Low Voltage Directive 2014/35/EU.

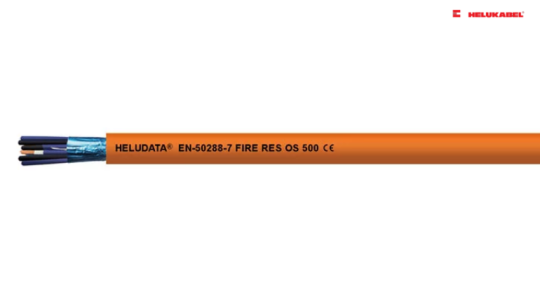

3. HELUDATA® EN-50288-7 FIRE RES OS 500 cables
HELUDATA® EN-50288-7 FIRE RES OS 500 is used in harsh environments that require the transmission of digital signals such as mines, natural gas exploration tunnels, or the petrochemical industry. HELUDATA® EN-50288-7 FIRE RES OS 500 is a fire-resistant cable suitable for installation in dry or wet areas, with open, ventilated spaces and underground networks. In case of fire, the cable ensures stable operation for at least 180 minutes.
4. HELUDATA® EN-50288-7 FIRE RES IOS 500 cables
Similar to HELUDATA® EN-50288-7 FIRE RES OS 500, HELUDATA® EN-50288-7 FIRE RES IOS 500 is used to transmit signals in harsh environments such as oil mines, natural gas, and petrochemical industries. Cable elements are made from moisture-resistant materials that can withstand Hydrocarbon impacts. This cable is suitable for installation in dry or wet areas with open, ventilated spaces and underground networks. The product complies with the Low Voltage Directive 2014/35/EU.

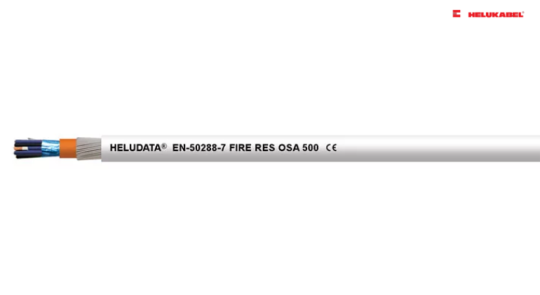

5. HELUDATA® EN-50288-7 FIRE RES OSA 500 cables
HELUDATA® EN-50288-7 FIRE RES OSA 500 is a fire-resistant cable that is preferred for installation in harsh environments with a high risk of fire and explosion, such as oil mines, natural gas, and petrochemical industries. This cable uses XLPE insulation material according to EN 50290-2-29 standard.
This cable is suitable for installation in both dry and wet areas and can be installed underground. In case of fire, the cable can ensure stable signal transmission for at least 180 minutes. The product complies with the Low Voltage Directive 2014/35/EU.
Find our fire-resistant cables here:
| Fire-resistant instrumentation cables | Features | Part no. |
| HELUDATA® EN-50288-7 FIRE RES OS 500 | XLPE/OS/LS0H | 11016430 |
| HELUDATA® EN-50288-7 FIRE RES IOS 500 | XLPE/IS/OS/LS0H | 11016566 |
| HELUDATA® EN-50288-7 FIRE RES OSA 500 | XLPE/OS/SWA/LS0H | 11016406 |

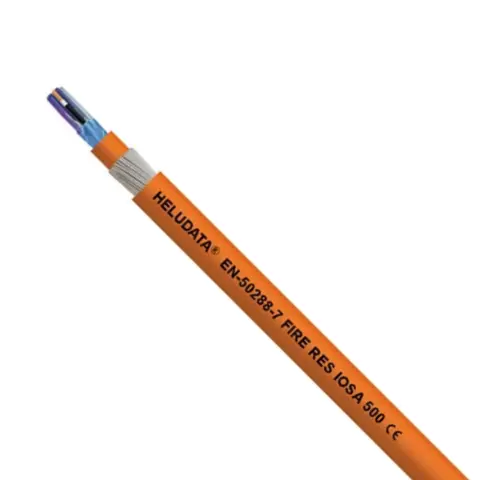

| HELUDATA® EN-50288-7 FIRE RES IOSA 500 | XLPE/IS/OS/LS0H/SWA/LS0H | 11016416 |
| HELUTHERM® FR BS 7629 | High temperature, halogen-free, fire resistant, LPCB certified |
| Fire-resistant control cables | Outer sheath | Temperature | Part no. | CPR class |
| JZ-500 HMH | Halogen-free polymer | flexible -25°C to +70°C fixed -40°C to +70°C | 11201 | Dca |
| JZ-600 HMH | 12723 | Dca | ||
| JZ-500 HMH-C | 11656 | Dca | ||
| JZ-600 HMH-C | 12850 | Dca | ||
| JB-750 HMH | Halogen-free polymer | flexible -15°C to +70°C fixed -40°C to +70°C | 11965 | |
| JB-750 HMH-C | 11942 | |||
| HELUCONTROL® JZ-520-HMH LS0H GREY | 11008617 | B2ca | ||
| HELUCONTROL® JZ-520-HMH-C LS0H GREY | 11008758 | B2ca |
| Outer sheath | Temperature | Part no. | |

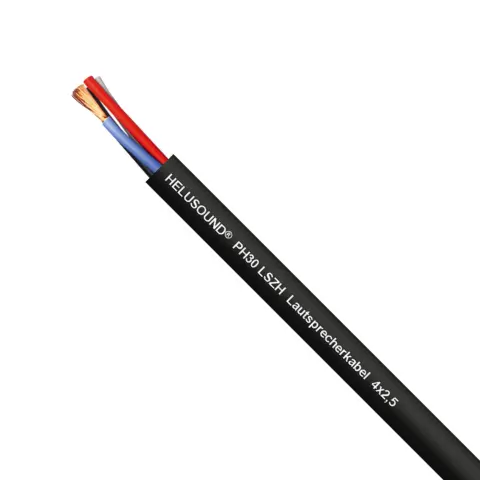

| HELUSOUND® Speaker Cable PH 30 LSZH | LS0H | flexible -20°C to +90°C fixed installation -30°C to +90°C | 11008297 |

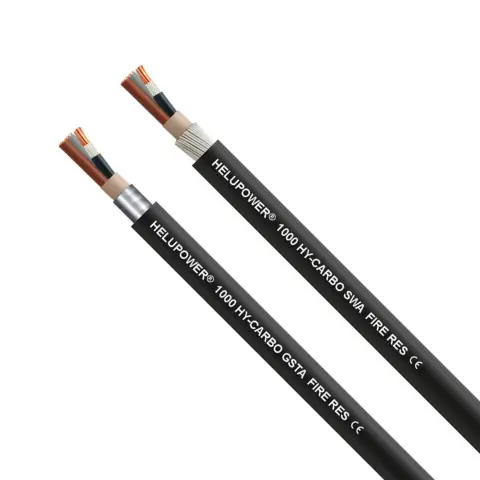

| HELUPOWER® 1000 HY-CARBO SWA FIRE RES | hydrocarbon resistant PVC | flexing -5°C to +50°C fixed installation -20°C to +90°C short circuit temperature max. 250°C | 17001960 |

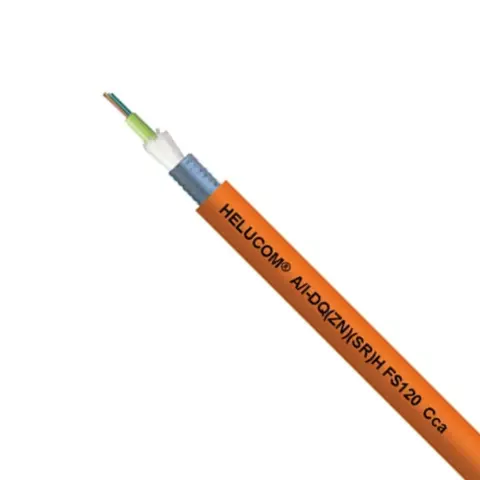

| HELUCOM® FS120 A/I-DQ(ZN)(SR)H Cca | FR/LSOH | Operating, min.: -40°C Operating, max.: +70°C | 11017454 |
| Profibus L2 FRNC 200°C STATIC black 1 x 2 x AWG 23 / 1 | FRNC | -50°C to +200°C | 805706 |
| In case of fire | Outer sheath | Temperature | Part no. |

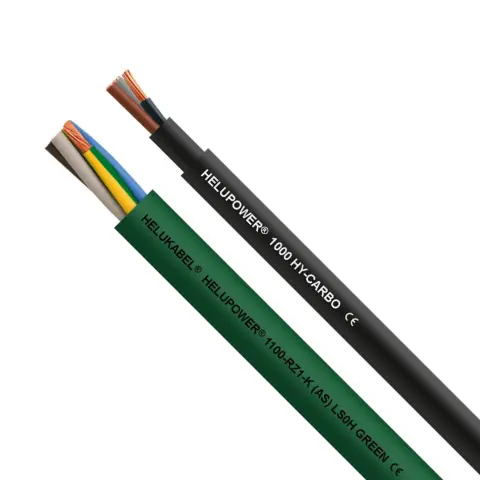

| HELUPOWER® 1000 HY-CARBO | hydrocarbon resistant PVC | flexing -5°C to +50°C fixed installation -20°C to +90°C short circuit temperature max. 250°C | 17001900 |
| HELUPOWER® 1000 HY-CARBO SWA | 17002000 | ||
| HELUPOWER® 1000 HY-CARBO SWA EMC | 17002250 | ||
| HELUPOWER® 1000 HY-CARBO LEAD GSTA | fixed installation -20°C to +70°C (90°C at the conductor) short circuit temperature max. 250°C | 17002500 | |
| HELUPOWER® 1100-RZ1-K LS0H GREEN | Polyolefin acc. to UNE 21123-4 | flexible 0°C to +90°C fixed -15°C to +90°C | 11008092 |
| HELUPOWER® THERMFLEX® 145-Single | cross-linked polyolefin | flexible -40°C to +120°C fixed -55°C to +145°C | 75486 |
| HELUPOWER® THERMFLEX® 145-C | 17001676 | ||
| THERMFLEX® 180 EWKF | Special silicone | flexible -25°C to +180°C fixed -60°C to +180°C | 74992 |
