HELUKABEL FLAME-RETARDANT CABLE FOR INDUSTRIAL APPLICATIONS
What are flame-retardant cables?
Flame-retardant cable is a type of cable that can prevent the spread of fire in the event of a fire. Therefore, in case of a fire incident, the cable will be able to maintain its operation for a certain period of time without affecting the quality of signal transmission. At the same time, the fire will only burn at a certain distance and will not spread to other cables. Flame-retardant cables are installed in places with high risk of fire and explosion and need to meet strict safety standards such as schools, public buildings, and hospitals.
Characteristics of flame-retardant cables
Similar to fire-resistant cables, flame-retardant cables are made from LSZH materials with characteristics that do not contain Halogen, do not emit toxic gases when burned, and maintain the stability of the transmission. Flame-retardant cables must meet minimum standards for testing smoke emissions such as: IEC 60754 or BS EN 60754, IEC 61034 or BS EN 61034.
At HELUKABEL, we specialize in researching and manufacturing flame-retardant and fire-resistant cables for various industries. Understanding the importance of this product line in major projects, we always advise and design suitable product features for customer projects. With a product portfolio of over 33,000 products and accessories in electrical connection technology, we can provide a comprehensive solution from a single source for your project.
Call +84 28 77755578 or email us at info@helukabel.com.vn or register for free advice on control cables, and signal cables... with specialized engineers.
Common types of flame-retardant cables
Flame-retardant non-corrosive (FRNC) cables
This type of flame-retardant cables prevent the spread of fire whilst minimizing corrosive gas in the event of fire.
Halogen-free flame-retardant (HFFR) cables
HFFR cables are halogen free, which helps to eliminate toxic emissions in the event of a fire.
Low smoke zero halogen (LSZH) cables
LSOH, LS0H cables are different name of LSZH cables. Basically, these types of flame-retardant cables produce mimimal smoke compared to other materials, such as PVC.
Flame-retardant control and signal cables
Control and signal cables that adhere to flame-retardant test and standards are also used in applications that operate in harsh environment conditions.
1. Control cables
Discover our products

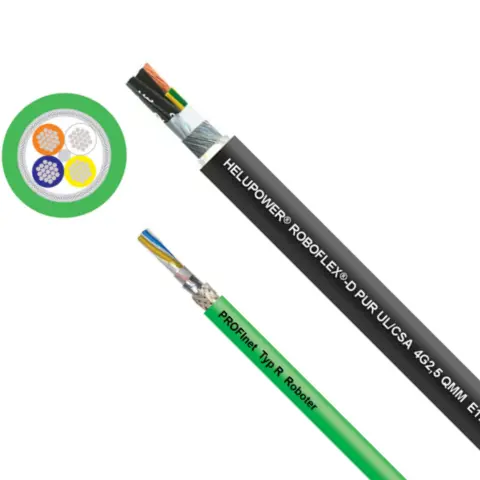

2. Flame-retardant cables for robotic applications
Discover our products

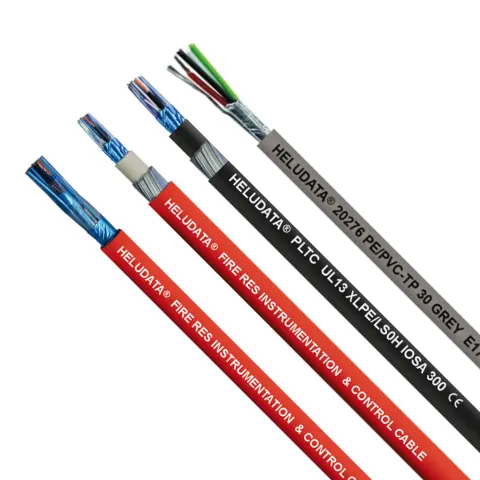

3. Flame-retardant cables for petrochemical industry
Discover our products
4. Flame retaradant cables for EV
Discover our products

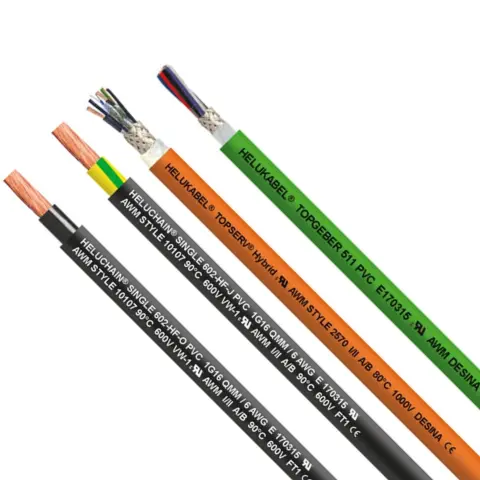

5. Cables for automation/drive technology
Discover our products
6. Ethernet cables
Discover our products

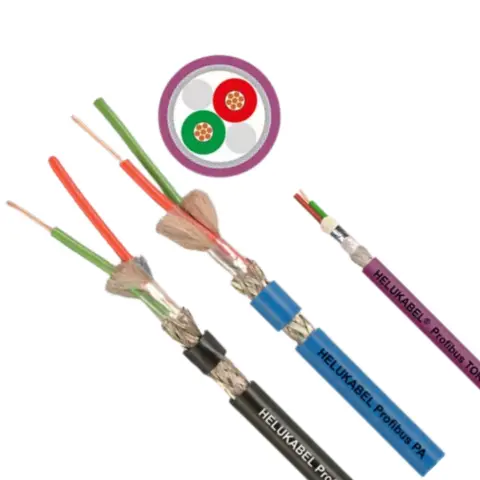

7. Bus cables
Discover our products

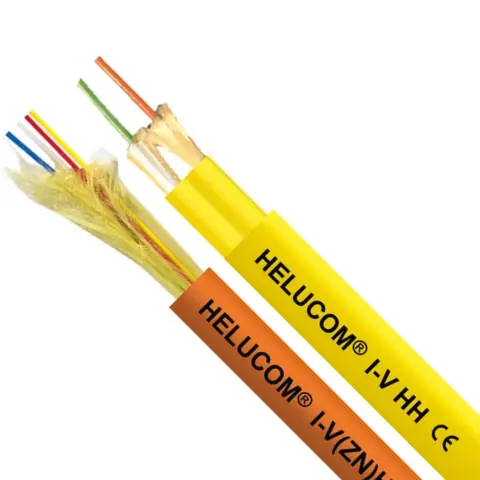

8. Flame-retardant fiber optic cables
Discover our products
9. Cables for solar and wind energy
Discover our productsGet a Quote & Expert Consultation
Characteristics of some flame-retardant cables HELUKABEL

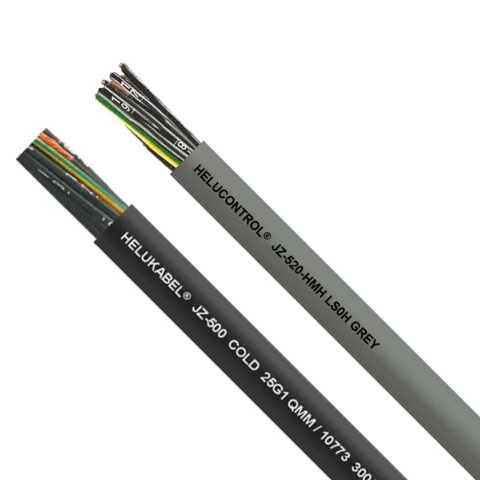

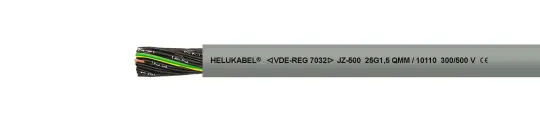

1. JZ-500 flame-retardant control cable
JZ-500 flame-retardant control cable is used in medium mechanical stress with free movement, no tensile stress, and no forced motion control in dry, humid, and wet rooms. JZ 500 is used as a connection and control cable in machinery, tools, assembly lines and conveyors, production lines, in construction plants, air conditioning technology, in refining furnaces and rolling mills. This control cable uses PVC compounds that ensure good flexibility, efficiency, and quick installation.

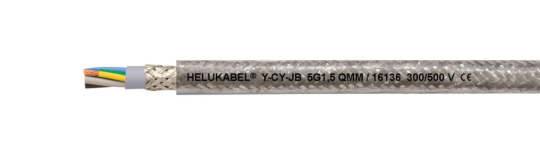

2. Y-CY-JB Flame-retardant shielded control cable
Y-CY-JB flame-retardant shielded control cable is a flexible cable used in medium mechanical stress with free movement, no tensile stress, and no forced motion control in dry rooms, but it is not suitable for outdoor use. The cable is used in technology control and measurement equipment, machine and machine tool manufacturing, conveyor belts and production lines, in computers, as well as signal cables in electronics due to its high-density filtering and signal transmission without interference.

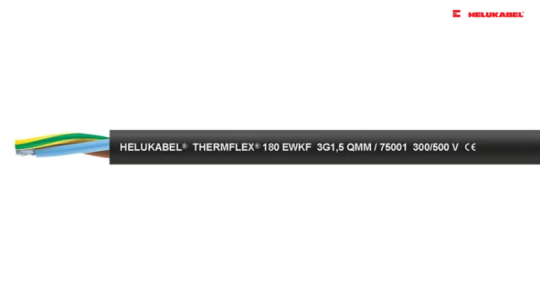

3. THERMFLEX® 180 EWKF cables
Halogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures.

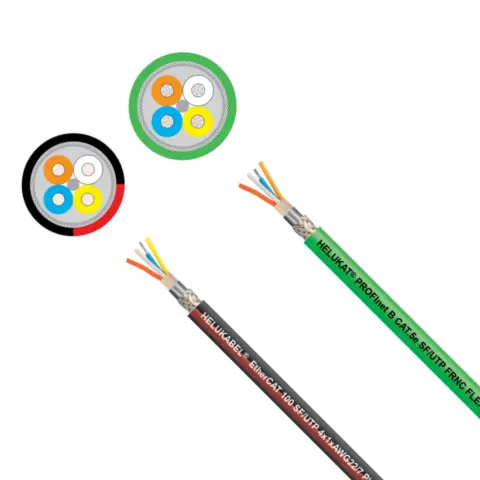

4. HELUKAT® PROFInet B CAT.5e SF/UTP FRNC SHIPLINE
Industrial Ethernet cable / Cat. 5e acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-6, PROFInet Guideline, UL-Std. 444 (CM), CSA-Std. C22.2 No. 214 - CM, UL-Std. 13 (PLTC).
HELUKAT® PROFInet B CAT.5e SF/UTP FRNC SHIPFLEX designed specially for marine/offshore applications.
Find our flame-retardant cables here:
Control cables
| Control cables | Outer sheath | Temperature range | Part no. |
| JZ-500 | special PVC | flexible -15°C to +80°C fixed -40°C to +80°C | 10001 |
| JZ-500-ORANGE | PVC | flexible -15°C to +80°C fixed -40°C to +80°C | 10537 |
| JZ-500 COLD / OZ-500 COLD | special PVC | flexible -30°C to +80°C fixed -40°C to +80°C | 10750 |
| Y-CY-JZ | special PVC | flexible -15°C to +80°C fixed -40°C to +80°C | 16200 |
| JZ-500 HMH | halogen-free polymer | flexible -25°C to +70°C fixed -40°C to +70°C | 11201 |

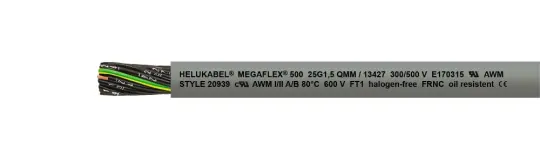

| MEGAFLEX® 500 | flexible -30°C to +80°C fixed -40°C to +80°C | 13344 | |
| JZ-600 HMH | flexible -25°C to +70°C fixed -40°C to +70°C | 12723 | |
| OZ-BL | special PVC | flexible -15°C to +80°C fixed -40°C to +80°C | 14001 |
Robot cables
| Cables for robotic applications | Outer sheath | Temperature range | Part no. |
| HELUDATA® ROBOFLEX® PUR UL/CSA | special PUR | flexible -30°C to +90°C; fixed -40°C to +90°C | 11022005 |
| HELUDATA® ROBOFLEX®-PAIR-D PUR UL/CSA | special PUR | flexible -30°C to +90°C; fixed -40°C to +90°C | 11022463 |
| HELUCONTROL® ROBOFLEX® PUR UL/CSA | special PUR | flexible -30°C to +90°C; fixed -40°C to +90°C | 11022017 |
| HELUPOWER® ROBOFLEX® PUR UL/CSA | special PUR | flexible -30°C to +90°C; fixed -40°C to +90°C | 11022415 |

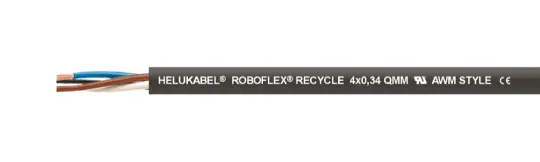

| HELUDATA® ROBOFLEX®-recycle PUR UL/CSA | special PUR | flexible -30°C to +105°C; fixed -40°C to +105°C | 11022475 |
| HELUKAT® PROFInet R+ CAT.5e SF/UTP PUR ROBOTIC | PUR | flexible -30°C to +90°C; fixed -40°C to +90°C | 11007800 |
| HELUKAT® 100T CAT.5 SF/UTP PUR TORSION | PUR | flexible -30°C to +70°C; fixed installation -40°C to +80°C | 800067 |
| HELUKABEL® BUS Cables Profibus L2 Torsion | PUR | -30°C to +70°C | 800109 |
| Cables for petrochemical industry | Outer sheath | Temperature range | Part no. |
| HELUDATA® EN-50288-7 PVC/PVC IOSA 300 | PVC | flexing -5°C to +50°C fixed installation -30°C to +70°C | 11015137 |
| HELUTHERM® PLTC UL 13 / ANSI MC 96.1 XLPE/LS0H | LS0H | flexing -5°C to +50°C fixed installation -30°C to +90°C | 17001400 |
| TRAYCONTROL® 300 TP | PVC đặc biệt | -25°C to +105°C | 62794 |
| HELUDATA® UL 2464 PVC-TP BLACK | PVC | -30°C to +105°C | 11000620 |
| HELUDATA® PAS 5308 PE/PVC IAM/CAM/SWA | PVC | -30°C to +80°C | 11001070 |
| HELUPOWER® 1100-RZ1-K LS0H GREEN | Polyolefin | flexible 0°C to +90°C; fixed -15°C to +90°C | 11008092 |
| HELUPOWER® 1000 HY-CARBO SWA | hydrocarbon resistant PVC | fixed installation -20°C to +90°C; short circuit temperature max. 250°C | 17002000 |
| HELUPOWER® 1000 HY-CARBO LEAD GSTA | hydrocarbon resistant PVC | fixed installation -20°C to +70°C; short circuit temperature max. 250°C | 17002500 |

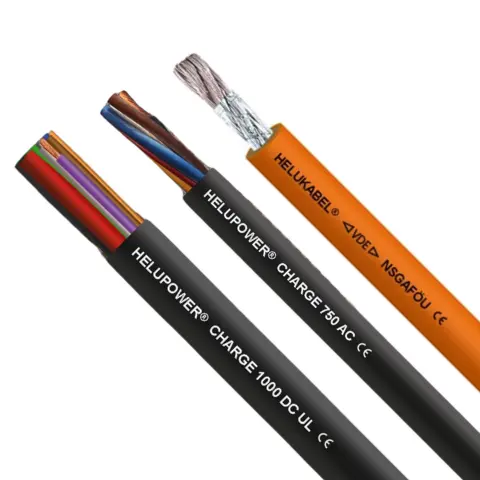

Cables for e-mobility
| Cables for EV | Outer sheath | Temperature range | Part no. |
| HELUPOWER® CHARGE-750-AC | halogen-free | flexible -40°C bis +90°C; fixed -40°C bis +90°C | 17001062 |
| HELUPOWER® CHARGE-1200-DC | halogen-free | flexible -40°C bis +90°C; fixed -40°C bis +90°C | 17001086 |
| HELUPOWER® CHARGE-1000-AC-UL | TPE-O | flexible -40°C bis +90°C; fixed -40°C bis +90°C | 17001265 |
| HELUPOWER® CHARGE-1000-DC-UL | TPU | flexible -40°C bis +90°C; fixed -40°C bis +90°C | 17001533 |
| Single 602-RC-CY-J | PVC | flexible -5°C to +90°C; fixed -40°C to +90°C | 69631 |
| NSGAFÖU 1,8/3 kV | Rubber | flexible -25°C to +80°C; fixed -40°C to +80°C | 38501 |
| HELUTHERM® 145 UL/CSA 600V | cross-linked | flexible -35°C to +120°C; fixed -55°C to +145°C | 59473 |
| Flame-retardant cables for automation /drive | Outer sheath | Temperature range | Part no. |
| TOPSERV® Hybrid PVC | PVC | flexible 0°C to +60°C; fixed -20°C to +80°C | 709930 |
| TOPSERV® PVC | PVC | flexible 0°C to +60°C; fixed -20°C to +80°C | 707250 |
| TOPGEBER® 511 PVC | PVC | flexible 0°C to +60°C; fixed -20°C to +80°C | 707417 |
| TOPSERV® Hybrid PUR | PUR | flexible -30°C to +80°C; fixed -40°C to +80°C | 709703 |
| PAAR-TRONIC-CY | PVC | flexible -5°C to +80°C; fixed -30°C to +80°C | 21001 |
| SUPERTRONIC®-330-C-PURö | PUR | flexible -30°C to +80°C; fixed -40°C to +80°C | 49797 |
| JZ-HF / OZ-HF | PVC | flexible -10°C to +80°C; fixed -40°C to +80°C | 15001 |
| Flame-retardant cables for automation | Outer sheath | Temperature range | Part no. |
| HELUKAT® 250S CAT.6 CMG SF/UTP PVC CHAIN | PUR | flexible -25°C to +80°C; fixed installation -40°C to +80°C | 805658 |
| HELUKAT® 100IND CAT.5 WK SF/UTP X-FRNC FLEX | X-FRNC | flexible -20°C to +60°C; fixed installation -40°C to +105°C | 802293 |
| HELUKAT® PROFInet B CAT.5e HYBRID SF/UTP FRNC FLEX | FRNC | -40°C to +70°C | 801651 |
| HELUKAT® PROFInet R+ CAT.5e SF/UTP PUR ROBOTIC | PUR | flexible -30°C to +90°C; fixed installation -40°C to +90°C | 11007800 |
| HELUKABEL® EtherCAT-P100S-L CAT.5e SF/UTP PUR CHAIN | PUR | flexible -30°C to +70°C; fixed -40°C to +80°C | 11007522 |
| HELUKAT® SPE Type C 1000BASE-T1 THICK SF/UTP PUR CHAIN | PUR | flexible -30°C to +80°C; fixed -40°C to +80°C | 11018068 |
| HELUKAT® SPE Type B 1000BASE-T1 HYBRID SF/UTP PUR FLEX | PUR | flexible -20°C to +90°C; fixed -40°C to +90°C | 11022604 |
| Bus cables | Outer sheath | Temperature range | Part no. |
| Profibus 1x2x0.64mm PVC +150°C | PVC | -40°C to +105°C | 805705 |
| SafetyBUS 3x0.75qmm FRNC | FRNC | -25°C to +80°C | 800651 |
| I-Bus Insta-long distance bus drag chain 3x2x0.25qmm +3x1.0qmm PUR | PUR | -20°C to +70°C | 82696 |
| CC-Link Bus 3x0.5qmm PVC | PVC | -40°C to +75°C | 800497 |
| FOUNDATION™ Fieldbus flexible Basic | PVC | -40°C to +80°C | 803354 |
| A-BUS TPE, UL CMG | TPE | -40°C to +105°C | 805693 |
| USB Bus S 2.0 drag chain | PUR | -30°C to +70°C | 802469 |
| Fibre optics | Type | Part no. |
| I-V(ZN)HH | Breakout cable | 80743 |
| A/I-VQ(ZN)BH | Mini breakout cable | 82804 |
| A/I-DQ(ZN)BH | Indoor/outdoor cable | 82792 |
| A-V(ZN)11Y | WK mobile | 80382 |
| AT-V(ZN)H(ZN)BH | Breakout Cable PROFIBUS + PROFInet | 805687 |
| AT-VYY | Robust | 800126 |
| AT-V(ZN)HH | HCS | 802260 |

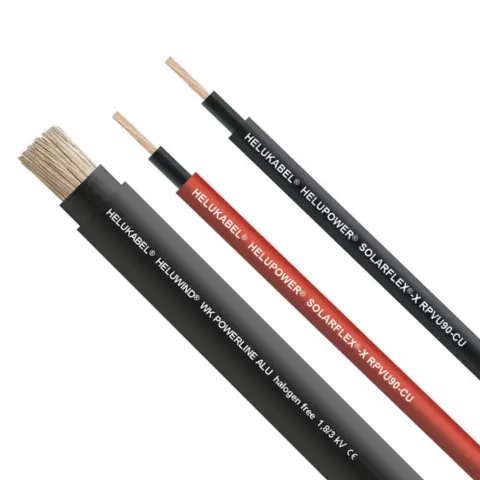

| Cables for energy sectors | Outer sheath | Temperature range | Part no. |
| SOLARFLEX®-X H1Z2Z2-K NTS | cross-linked | fixed -40°C to +90°C | 17000101 |
| HELUPOWER® SOLARFLEX®-X RPVU90-CU | cross-linked | fixed -40°C to +90°C | 18089441 |
| HELUPOWER® SOLARFLEX®-X PREMIUM | cross-linked | fixed -40°C to +90°C | 11024775 |
| HELUWIND® WK DLO, WK DLO-Torsion | TPE/CPE | flexible -25°C to +80°C; fixed -40°C to +80°C | 703156 |
| HELUWIND® WK POWERLINE ALU HALOGEN-FREE 1,8/3 kV | TPE-O | flexible -20°C to +90°C; fixed -40°C to +90°C | 709143 |
| HELUPOWER® H07RN-F LS0H | cao su đặc biệt | flexible -40°C to +90°C; fixed -50°C to +90°C | 30737 |
