Motor, Servo & Feedback Cables for Drive System

Why should you choose HELUKABEL’s servo, motor, feedback cables?

Currently, in the field of automation and electronic machinery manufacturing, motor cables, servo cables, and signal cables are essential components. These products play an important role in transmitting signals, ensuring seamless connectivity between each part of the production line, and helping machines operate stably and continuously.

Today, we can easily see images of signal cables everywhere, such as train stations, schools, airports, restaurants, and hotels. They perform the function of transmitting and connecting signals between electronic devices, computer network systems, fire alarm systems, or automated production lines. In addition, motor and servo cables are also the top choices in the fields of control, robotics, optical focal adjustment, device programming, and uninterrupted machining.

Each project in each field requires different criteria to select the most suitable cable lines. At HELUKABEL , we not only provide a diverse product portfolio for most industries but also research and manufacture custom electrical cables according to customers' technical requirements. All products are manufactured to ensure quality and optimization for customers' projects.

Call +84 28 77755578 or send us an email at info@helukabel.com.vn or register for consultation using the form to receive free advice on control cables, signal cables ...with specialized engineers.

Contact our HELUKABEL Vietnam engineers to get a quote & expert consultation

Contact form

Official Zalo Account

Find our servo, motor, feedback cables

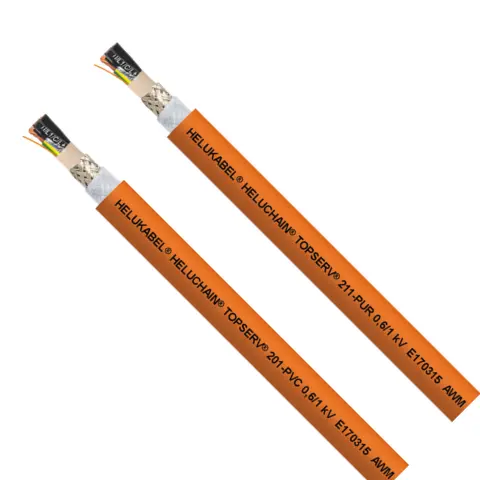

1. HELUCHAIN® TOPSERV® servo cable

Discover items

2. TOPFLEX® motor connection cable

Discover items

3. Motor supply cable

Discover items

4. VFD cables

Discover items

5. TOPSERV servo cable

Discover items

6. TOPGEBER feedback cable

Discover items

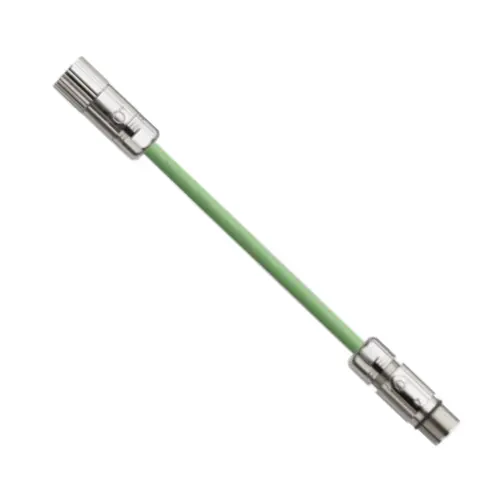

7. Encoder cable acc. to SIEMENS standard

Discover items

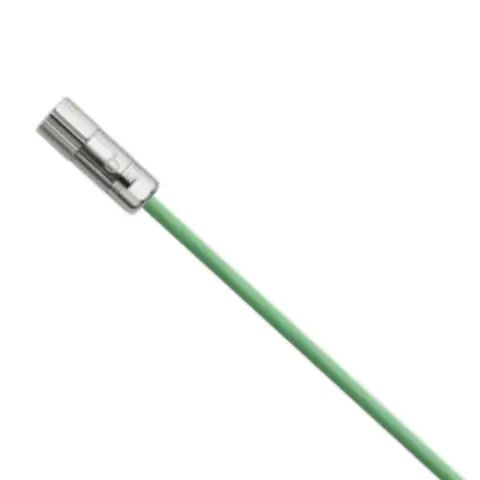

8. Encoder cable acc. to Lenze standard

Discover items

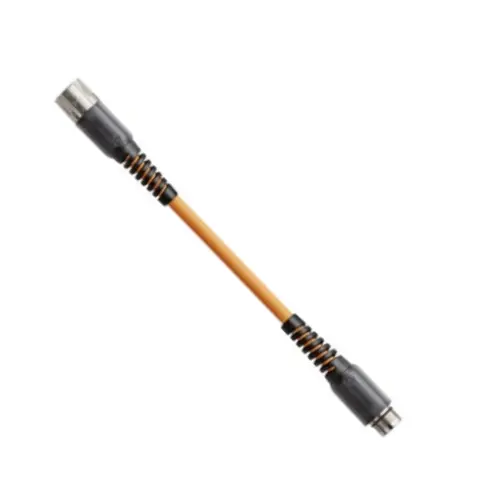

9. Encoder cables acc. to Rockwell & Allen Bradley standards

Discover items

Outstanding features of HELUKABEL's servo, motor, feedback cables

1. TOPSERV 600 VFD servo cable

TOPSERV servo cable is a widely used cable in the manufacturing industry, used in automated production lines that require high safety and durability. In addition, this product line can be used in cable chains with high mechanical stress resistance. The Topserv Servo cable production process meets VDE standards and is applied in the SIMODRIVE system.

2. TOPFLEX® -EMV-UV-2YSLCYK-J motor cable

TOPFLEX motor cable is the main cable used in Motor engines, allowing signal control and connection with DNC motors. This helps maintain stable and continuous operation of the motor. Topflex Motor cable is suitable for fixed installation or motion installation in many dry or humid environments.

TOPSERV 600 VFD is made from TPE, oil-resistant, EMC-preferred type

TOPFLEX® -EMV-UV-2YSLCYK-J is made from special PVC, double-screened

Features of TOPSERV® 600 VFD servo cable

Copper wire DIN VDE 0295, finely stranded according to ASTM B174 Class M
(18-10 AWG) / ASTM B174 Class K (8-2 AWG), AWG sizes
Outer sheath is made from special TPE
Temperature range: +5°C to 50°C (flexing), -40°C to +105°C (fixed installation)
Minimum bending radius: 10x cable Ø (flexing), 5x cable Ø (fixed installation)
Properties: resistant to oil, UV, can be used for direct burial, drag chain, ECOLAB® approval

Datasheet of TOPSERV® 600 VFD

Features of TOPFLEX®-EMV-2YSLCY-J

Copper wire DIN VDE 0295, finely stranded according to DIN VDE 0295 Class 5 /
IEC 60228 Class 5
Outer sheath is made from special PVC, transparent
Temperature range: +5°C to 70°C (flexing), -40°C to +70°C (fixed installation)
Minimum bending radius: 10-15 x cable Ø (flexing), 4x cable Ø (fixed installation)
Applications: automotive, food, packaging and chemical industries, environmental technology sector. In particular, it is especially suitable for use with industrial pumps, ventilators, conveyor belts, air conditioning installations and similar applications.

Datasheet of TOPFLEX®-EMV-2YSLCY-J

3. TOPFLEX® 600 VFD motor cable

TOPFLEX Motor cable is suitable for fixed installation or motion installation in many dry or humid environments. VFD cables are a critical component in order to extend a motor’s life cycle within a VFD system. Some VFD cables include:

TOPFLEX® 600 VFD
TOPFLEX® 650 VFD
TOPFLEX® 1000 VFD

4. Tachofeedback/Incremental feedback cable

The TOPGEBER feedback cable is a type of cable used to control Servo motors, adjust motor movements, and measure actual values. The product is also used as a flexible connector cable for speed measuring machines in environments with high mechanical stress, dry or wet conditions. As a data transmission cable with accurate and stable signal characteristics, TOPGEBER is widely used in the manufacturing industry for robots

TOPFLEX 600 VFD cable is flexible, extremely oil-resistant

Tachofeedback cable is highly flexible, for use in drag chains

Features of TOPFLEX ® 600 VFD motor cable

Tinned copper conductor, fine wire
Double screening with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage)
Special PVC core insulation with transparent nylon skin
Outer sheath is made from special PVC, black or orange
Temperature range: -25°C to +90°C
Minimum bending radius: flexing 6x cable Ø
Properties: extremely resistant to oil, coolants and solvents

Datasheet of TOPFLEX ® 600 VFD

Features of Tachofeedback/Incremental feedback cable

Bare copper-conductor, to DIN VDE 0295 cl.6, extra fine-wire, BS 6360 cl.6, IEC 60228 cl.6
Special PUR outer sheath, low adhesion
Temperature range: -30°C to +80°C (flexing), -40°C to +80°C (fixed installation)
Minimum bending radius: 10x cable Ø (flexing), 5x cable Ø (fixed installation)
Prperties: resistant to oils and fats, acids and alkalis, hydraulic fluids, oxygen and ozone, UV-radiation, hydrolysis, microbial attack, water and weathering effects

Datasheet of Tachofeedback/Incremental feedback

Order Now on HELUKABEL E-Store – Fast & Easy!

Tiki Shopee Lazada

	Cross-section	Operating temperature range	Maximum travel distance (m)	Bending factor	Part number
HELUCHAIN TOPSERV 201-PVC UL/CSA	1.5 to 6 mm²	0°C to +90°C	100	7.5	11029600
HELUCHAIN TOPSERV 211-PUR UL/CSA	1.5 to 6 mm²	-30°C to +90°C	100	7.5	11029601

Motor control cable	Operating temperature range	Nominal voltage	Cross-sectional area (mm²)	Insulation	Outer sheath	Part number
TOPFLEX®-EMV-2YSLCY-J	+5°C to +70°C	600/1000 V	1.5 - 185	PE	Special PVC	22084
TOPFLEX®-EMV-3-PLUS-2YSLCY-J	+5°C to +70°C	600/1000 V	0.25 - 240	PE	Special PVC	22368
TOPFLEX®-EMV-UV-2YSLCYK-J	-5°C to +70°C	600/1000 V	1.5 - 185	PE	Special PVC	22234
TOPFLEX®-EMV-UV-3-PLUS-2YSLCYK-J	-5°C to +70°C	600/1000 V	0.25 - 240	PE	Special PVC	22673
TOPFLEX®-EMV-UV-2YSLCYK-J UL/CSA	-5°C to +80°C	UL (AWM) 1000 V	1.5 - 185	PE	Special PVC	22320
TOPFLEX®-EMV-UV-3-PLUS-2YSLCYK-J UL/ CSA	-5°C to +80°C	UL (AWM) 1000 V	0.25 - 240	PE	Special PVC	22193
TOPFLEX®-EMV-UV-2XSLCHK-J	-15°C to +90°C	600/1000 V	1.5 - 185	XLPE	Special polyolefin	24522
TOPFLEX®-EMV-UV-3-PLUS-2XSLCHK-J	-15°C to +90°C	600/1000 V	0.25 - 240	XLPE	Special polyolefin	24536
TOPFLEX®-EMV-UV-2XSLCYK-J	-5°C to +90°C	600/1000 V	1.5 - 185	XLPE	Special PVC	24489
TOPFLEX®-EMV-UV-3-PLUS-2XSLCYK-J	-5°C to +90°C	600/1000 V	0.25 - 240	XLPE	Special PVC	24508
TOPFLEX®-EMV-UV-3-PLUS-2XSLCYK-J UL/CSA	-5°C to +90°C	600/1000 V	0.25 - 120	XLPE	Special PVC	22804
TOPFLEX®-EMV-UV-2YSLC11Y-J UL/CSA	-5°C to +80°C	UL (AWM) 1000 V	1.5 - 185	PE	PUR	22389
TOPFLEX®-MOTOR-EMV 3/3	-30°C to +80°C	UL (AWM) 1000 V	0.25 - 120	XLPE	Special PU	78614
TOPFLEX®-MOTOR-EMV 1/1	-30°C to +80°C	UL (AWM) 1000 V	1.5 - 120	XLPE	Special PU	78377
TOPFLEX® 302 / 302-UL	-15°C to +80°C	600/1000 V	1.5 - 240	PVC	PVC	72946 / 700231

Motor supply cable	Operating temperature range	Nominal voltage (V)	Bending factor	Cross-sectional area (mm²)	Insulation	Outer sheath	Part number
TOPFLEX® 611-C-PUR	-30°C to +70°C	600/1000	10	1.5 - 120	PP	Special PU	22970
TOPFLEX® 600-C-PVC	-15°C to +80°C	600/1000	7.5	1.5 - 120	PVC	Special PVC	22960
TOPFLEX® 611-PUR	-30°C to +80°C	600/1000	7.5	1.5 - 120	PP	Special PU	22870
TOPFLEX® 600-PVC	-15°C to +80°C	600/1000	7.5	1.5 - 120	PVC	Special PVC	22860
TOPFLEX®-PVC	-5°C to +70°C	350	10	0.14 - 0.5	PVC	Special PVC	22800
TOPFLEX®-PUR	-30°C to +80°C	350	10	0.14 - 0.5	PP	Special PUR	22847
TOPFLEX®-MOTOR-EMV 103	-5°C to +70°C	1000 (UL)	10 - 20	1.5 - 25	Special polymer	Special PUR	22689

Servo motor cable for VFD motor	Operating temperature range	Nominal voltage (V)	Bending factor	AWG	Insulation	Outer sheath	Part number
TOPFLEX® 600 VFD	+5°C to +50°C	TC 600 V WTTC 1000 V	10	2 - 18	XLPE	Special PVC	63139
TOPFLEX ® 650 VFD	-25°C to +105°C	TC 600 V WTTC 1000 V	6	4 - 18	Special PVC	Special TPE	63156
TOPFLEX® 1000 VFD	+5°C to +50°C	TC 600 V WTTC 1000 V	15	500 kcmil - 8	XLPE	Special PVC	59398
TOPSERV® 600 VFD	+5°C to +50°C	TC 600 V WTTC 1000 V	10	2 - 18	XLPE	Special TPE	62607
TOPSERV® 650 VFD	+5°C to +50°C	TC 600 V WTTC 1000 V	10	4 - 18	XLPE	Special TPE	59837

TOPSERV® servo cable	Operating temperature range	Nominal voltage (V)	Bending factor	Cross-sectional area (mm²)	Insulation	Outer sheath	Part number
TOPSERV® 109 PUR, acc. to Siemens 6FX8008PLUS	-30°C to +80°C	UL/CSA 1000	7.5	1.5 - 95	Halogen-free PP	PUR	75943
TOPSERV® 113 PUR, acc. to Siemens 6FX8008PLUS				1.5 - 50			78948
TOPSERV® 113 PUR, acc. to Lenze				0.5 - 16			707228
TOPSERV® 113 PUR				0.5 - 50			77376
TOPSERV® 121 PUR, acc. to Bosch Rexroth				0.5 - 50			706003
TOPSERV® 108 PVC, acc. to Siemens 6FX5008	-0°C to +60°C	UL/CSA 1000	15	1.5 - 50	Halogen-free PP	PVC	707250
TOPSERV® 112 PVC, acc. to Siemens 6FX5008				1.5 - 50			707280
TOPSERV® 112 PVC, acc. to Lenze				0.5 - 16			707221
TOPSERV® 119 PVC, acc. to Bosch Rexroth				0.75 - 16			707290
TOPSERV® 110 / 120	-30°C to +80°C	600/1000	7.5	1.0 - 50	Halogen-free PP	PUR	71491 / 71990
TOPSERV® Hybrid PVC / PUR	-30°C to +80°C	600/1000	7.5	1.0 - 50	Halogen-free PP	PVC / PUR	709930 / 709703

TOPGEBER feedback cable	Operating temperature range	Nominal voltage (V)	Bending factor	Cross-section	Insulation	Outer sheath	Part number
TOPGEBER 512 PUR	-30°C to +80°C	30 V (Siemens); 300 V (Bosch Rexroth and Lenze)	10	0.14 - 1.0	special polypropylene	PUR	700655
TOPGEBER 511 PVC	0°C to +60°C	30 V (Siemens); 300 V (Bosch Rexroth and Lenze)	15	0.14 - 1.0	special polypropylene	PVC	707417
Incremental Feedback Cable C-PUR	-30°C to +80°C	250	10	AWG 24	PP	Special PUR	22818
Incremental Feedback Cable PVC	-5°C to +70°C	350	10	AWG 24	PVC	Special PVC	22825
Tacho feedback cable C-PUR	-30°C to +80°C	450	10	AWG 20	PP	Special PUR	22823

Encoder cable acc. to SIEMENS standard	Manufacturer designation	HCSB designation	Motor-side plug	Cable	Controller-side plug
Static application	6FX5002-2DC00	2DC00 PVC	Metal shell RJ45 IP20	2x2x0.22+2x0.38	Metal shell RJ45 IP20
	6FX5002-2DC30	Signal cable 2DC30 PVC	M12 coupling socket	2x2x0.22+2x0.38	Metal shell RJ45 IP20
	6FX5002-2DC20	2DC20 PVC metal shell	Metal shell RJ45 IP67	2x2x0.22+2x0.38	Metal shell RJ45 IP67
Dynamic application	6FX8002-2DC44	2DC44 PVC metal shell	M17 plug	2x2x0.22+2x0.38	M17 coupling
	6FX8002-2DD44	2DD44 Polyurethane	M17 Speedtec plug	2 times 2 times 0.2 plus 2 times 0.38	M17 Speedtec coupling ready
	6FX8002-2EQ14	Signal cable 2EQ14 PVC	17-pin signal connector	(3 × (2 × 0.14) + 4 × 0.14 + 4 × 0.22 + 2 × 0.5)	Speedtec signal coupling

Encoder cable according to Lenze standard	Manufacturer designation	HCSB designation	Motor-side plug	Cable	Controller-side plug
Static application	EWLRxxxGM-T	Resolver cable GM-T	M23 threaded plug nut	(3x(2x0.14+2x0(5))	9-pin D-sub
	EYF0018AxxxxF02S03	Encoder cable PVC F02S03	M23 threaded plug nut	4x(2x0.14)+(2x1.0)	15-pin D-sub
	EYF0017AxxxxF01S02	Encoder cable PVC F01 S02	M23 plug	(4 × 2.5 + (2 × 0.1))	9-pin D-sub
Dynamic application	EWLRxxxGMS-T	Resolver cable GMS-T	M23 plug	(3x(2x0.14)+2x(0.5))	9-pin D-sub
	EYF0020AxxxxA00S04	Encoder cable A00S04 PUR	9-pin D-sub	3x(2x0.14)+(3x0.14)	Open-ended
	EYF0020AxxxxF01A00	Encoder cable EYF0020AF01A00 PUR	M23 plug	3x(2x0.14)+(3x0.14)	Open-ended

Encoder cable acc. to Rockwell standards Allen Bradley	Manufacturer designation	HCSB designation	Motor-side plug	Cable	Controller-side plug
Static application	CFBM4D7-CD	Feedback cable RO, 17-pin Circular/AE PVC	M23, 17-pin plug	15070025	Open-ended
	CFBM7DF-CD	Feedback cable RO Circuit STec/A.E. PVC lock	M23, 17-pin plug	15070025	Open-ended
	CFBM4DD-CD	Feedback cable RO Circuit STec/A.E. PVC lock DSUB	M23, 17-pin plug	15070025	D-Sub, 15-pin HD
Dynamic application	CFBM7E7-CE	Feedback extension RO Cir. STec (CE) lock	M23, 17-pin plug	15070027	M23, 17-pin coupling
	CFBM7DD-CE	Feedback cable RO Cir. STec/DSUB (CE) lock	M23, 17-pin plug	15070027	Sub, 15-pin, HD
	CFBM7DD-CD	Feedback cable RO Circuit STec/DSUB PUR lock	M23, 17-pin plug	15070026	DSUB, 15-pin HD
