Drag chain selection made simple: 5 must-know basics

Material, design, radius, length and width are all factors that must be carefully considered before ordering a drag chain. This article will help you understand the key elements needed to select a durable, cost-effective, and well-suited system.

Key considerations when selecting a drag chain

To ensure smooth operation, long system life, and reduced maintenance costs, choosing the right drag chain involves more than just matching dimensions or material types. It requires a comprehensive evaluation of your system's actual working conditions.

Below are some basic factors you should take into account before placing an order for a drag chain:

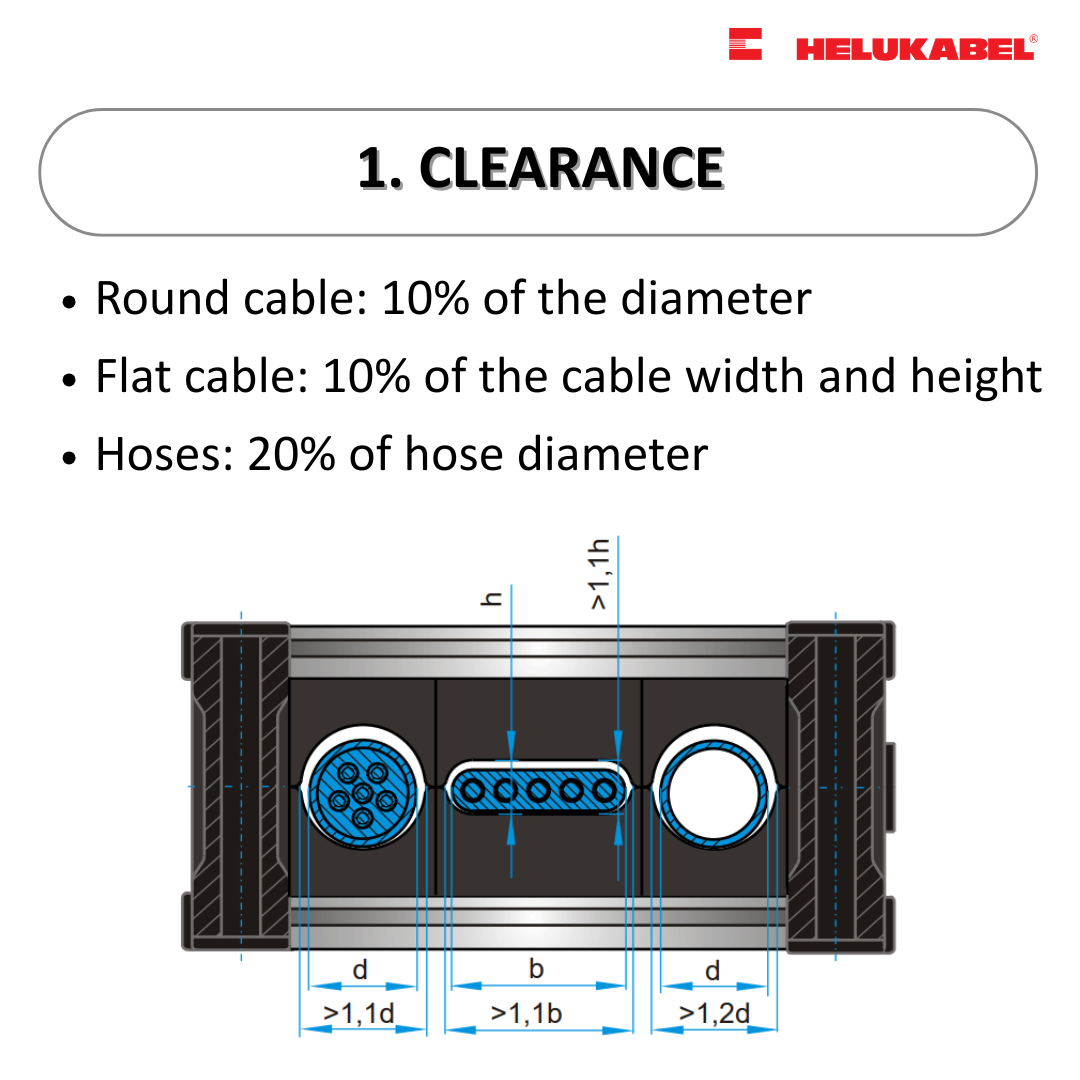

Drag chain selection made simple 1

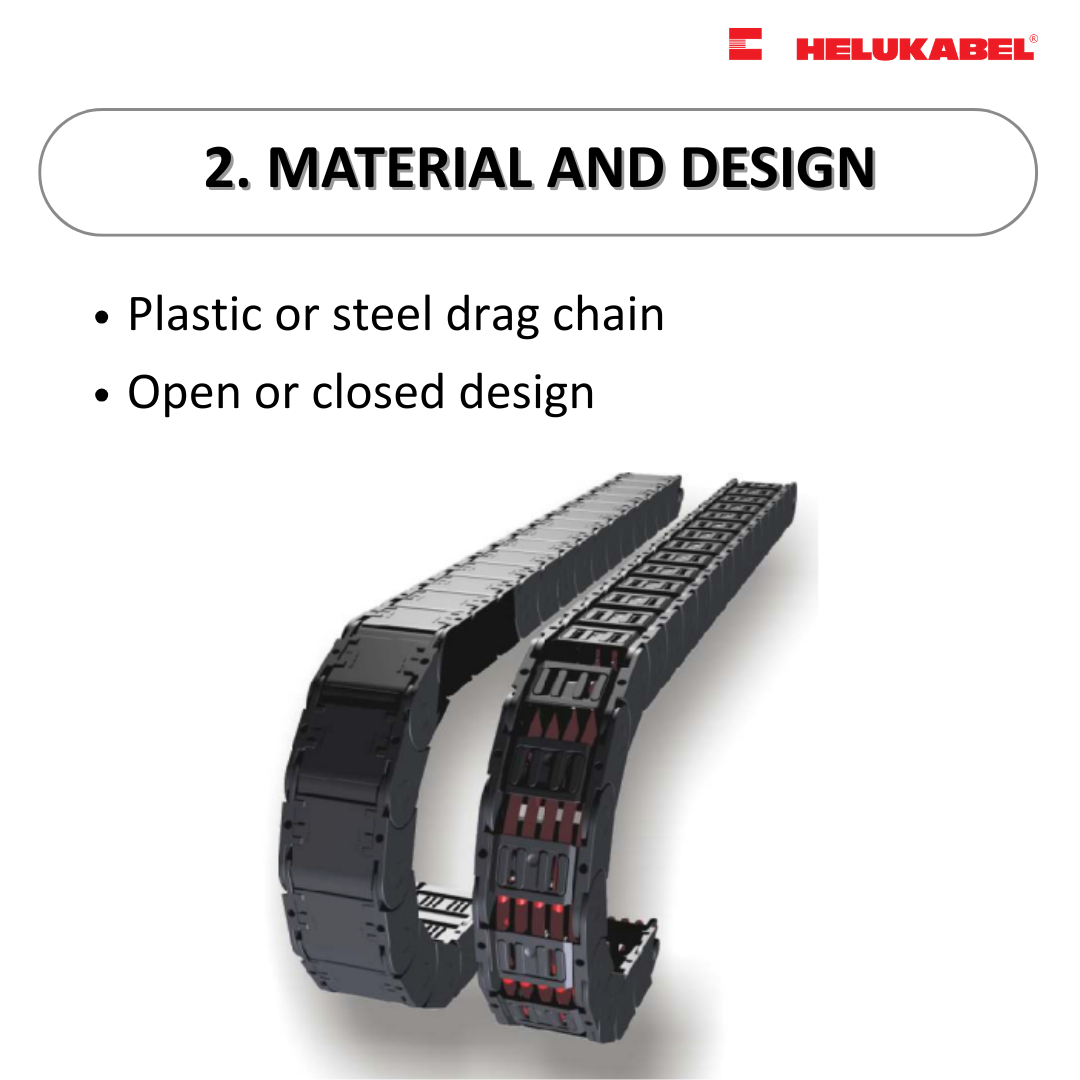

Drag chain selection made simple 2

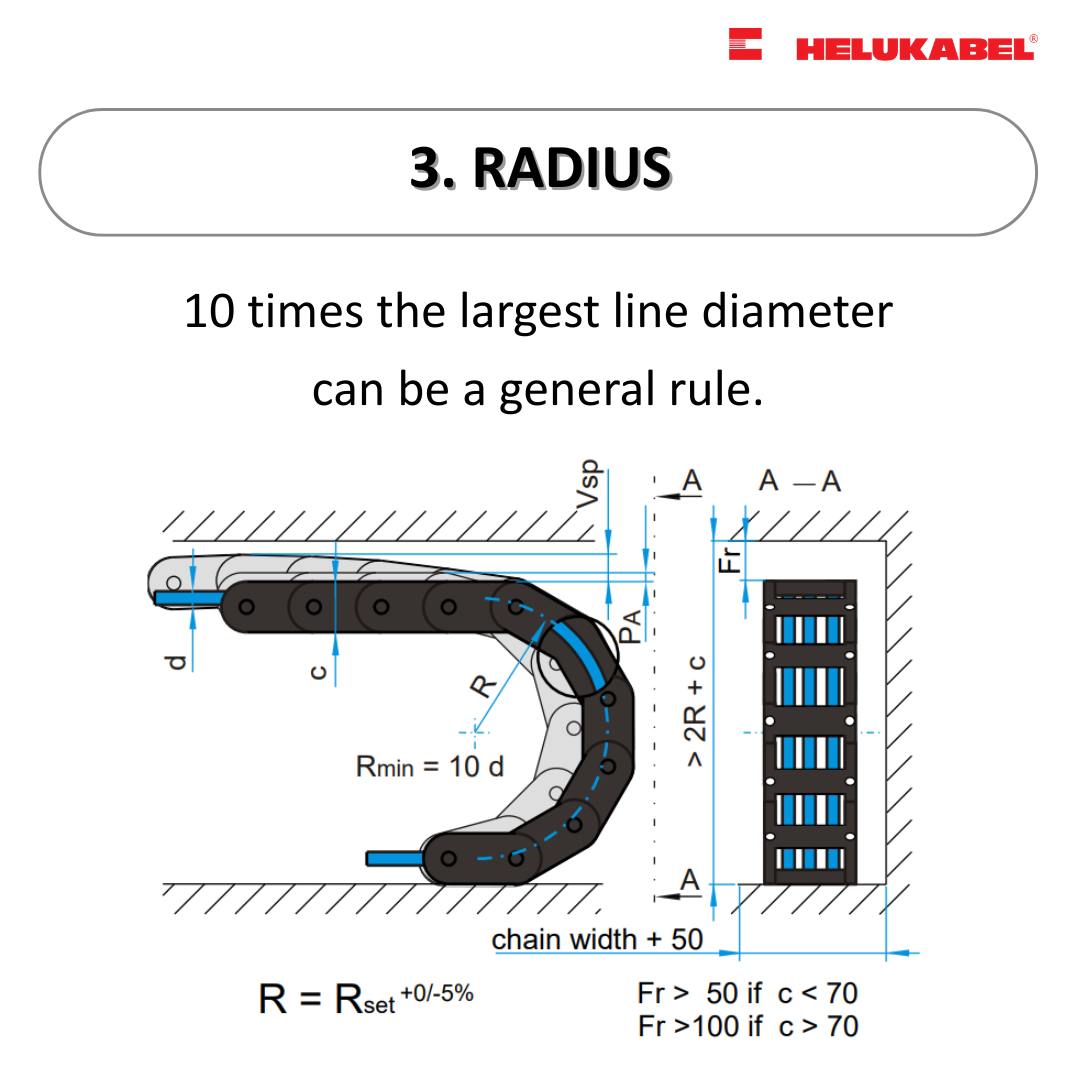

Drag chain selection made simple 3

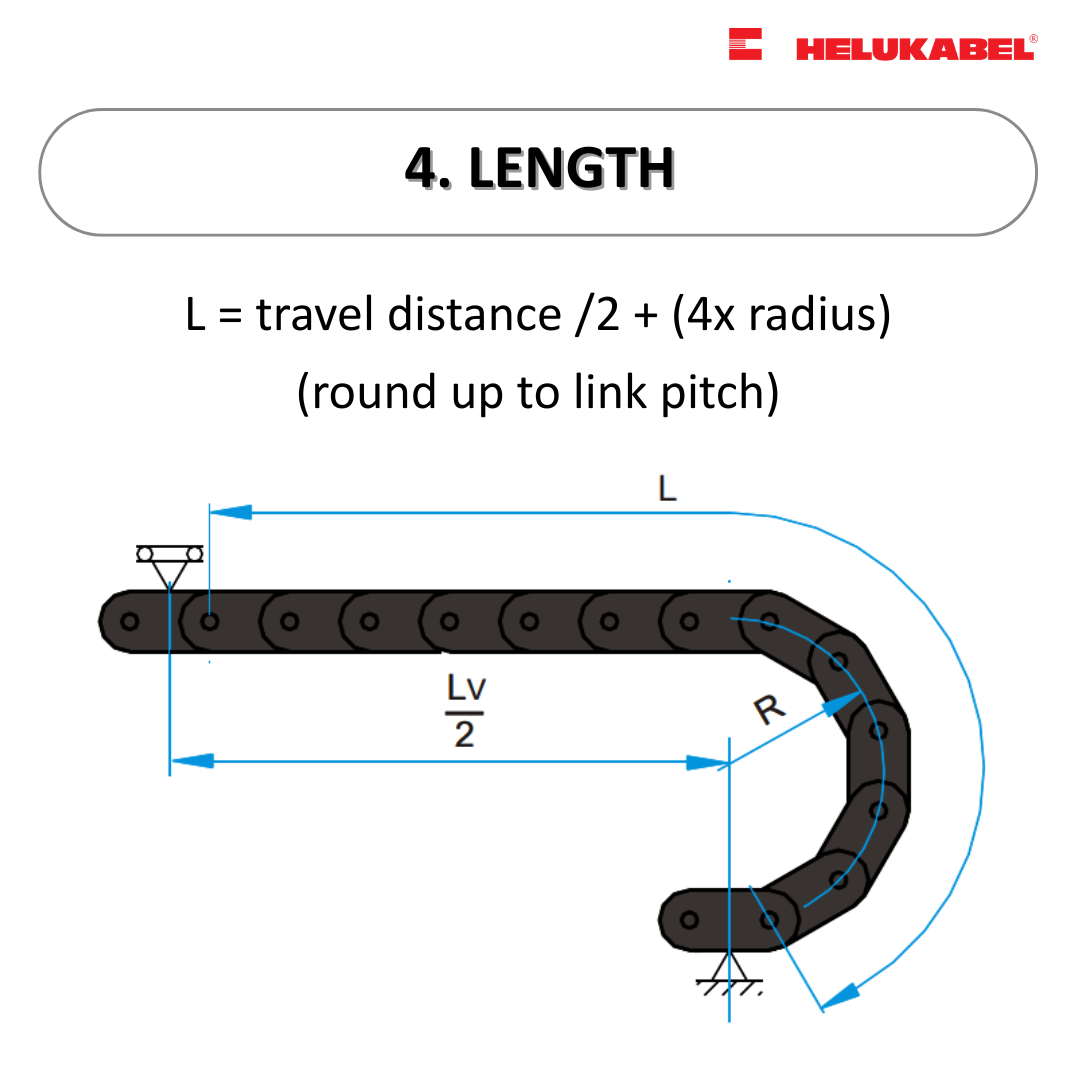

Drag chain selection made simple 4

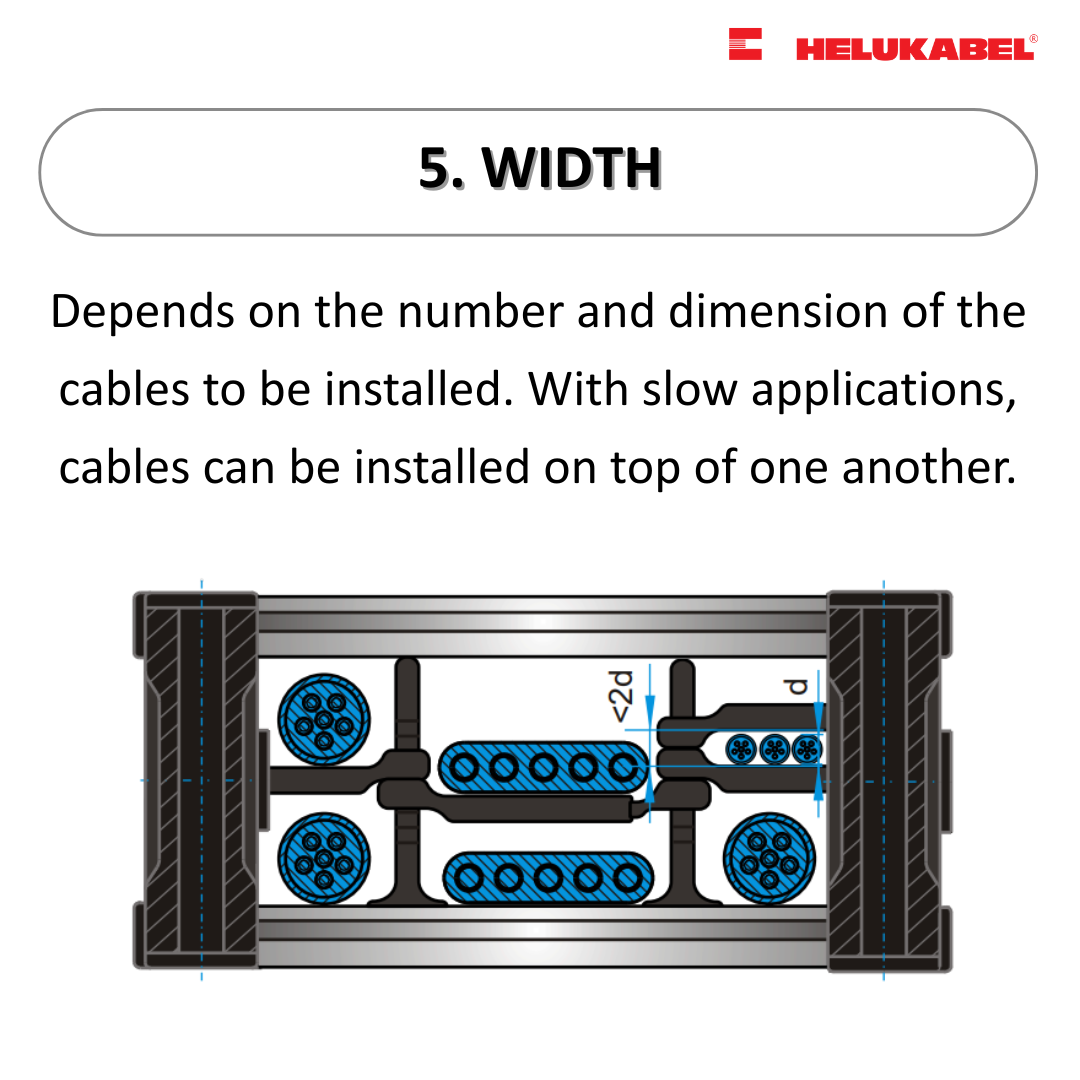

Drag chain selection made simple 5

HELUCHAIN® PLASTIC LINK 2-KL drag chain by HELUKABEL

For common applications in industrial environments, HELUCHAIN® PLASTIC LINK 2-KL plastic drag chain is a reliable choice. Its key advantages include high wear resistance, lightweight construction, and cost efficiency.

Below are some technical details of the HELUCHAIN® PLASTIC LINK 2-KL drag chain that can help you determine the most suitable configuration for your system:

SpecificationsDetails
Bending radius15 to 400 mm
Inner height7 to 50 mm
Inner width7 to 195 mm
Weight0.06 to 2.7 kg/m
Travel distanceUp to 100 m (according to the application).
Travel speedNo limits in general
AccelerationNo limits in general
Temperature-20°C to 100°C
HELUCHAIN® PLASTIC LINK 2-KL plastic drag chain

Contact our team for professional consultation and system-specific cable chain designs!
