Industrial Ethernet: Robust solution for Industrial Communication Networks

Industrial Ethernet is a solution that brings the proven Ethernet platform into harsh industrial environments. This network infrastructure is designed to withstand wide temperature ranges, continuous vibration, and long-term operation while maintaining a high level of reliability and stability.

The core advantage of Ethernet in industrial applications lies in its real-time transmission of control data, ensuring signals are sent and received precisely when required by the system. Compared to proprietary fieldbus technologies, Industrial Ethernet stands out thanks to its unified standards, high reliability, cost-effective hardware, and flexible scalability, fully aligned with modern networking trends.

Data cable in general and Ethernet cable in particular are the leading types of cables used in Bus technology to connect devices and ensure data transmission. The product plays an important role in maintaining a more stable, safe, and secure transmission line than traditional networking systems. Ethernet cable is a commonly used cable for connecting computers, routers or switches.

Ethernet cable was created to solve the problem of unstable transmission lines in manufacturing plants that require high levels of signal accuracy. The basic structure of this cable consists of two main types: solid core and stranded core. Solid core provides better performance, limits signal interference, and reduces transmission disruptions.

Cáp ethernet của HELUKABEL

Contact our HELUKABEL Vietnam engineers to get a quote & expert consultation

Contact form Official Zalo Account

Discover our Ethernet cables

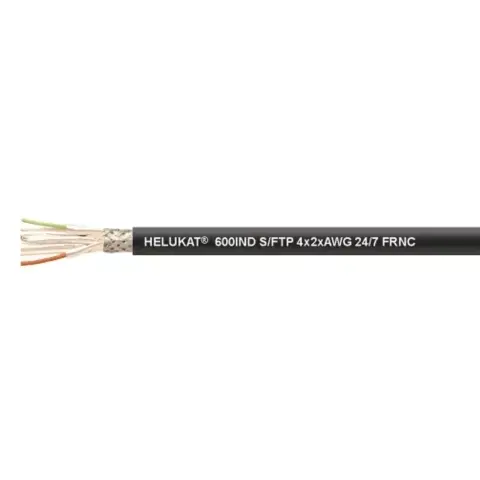

1. Cat 7 Ethernet cables

1. Cat 7 Ethernet cables

Our Cat 7 cables

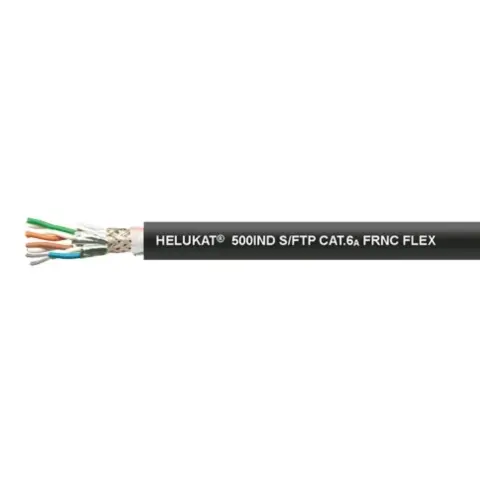

2. Cat 6 Ethernet cables

2. Cat 6 Ethernet cables

Our Cat 6 cables

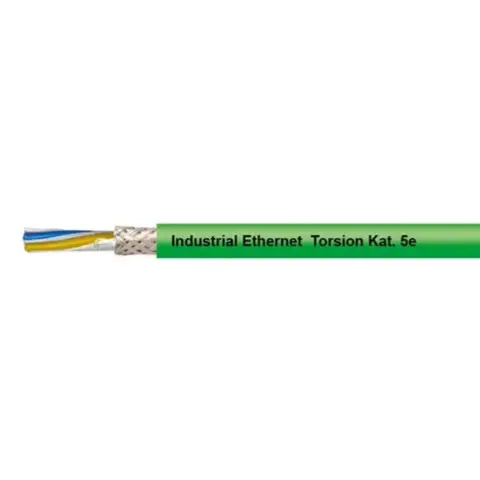

3. Cat 5 Ethernet cables

3. Cat 5 Ethernet cables

Our Cat 5 cables

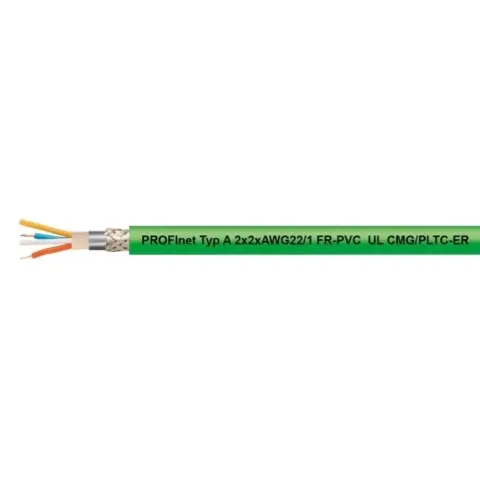

4. Profinet cable Type A, B, C, R

4. Profinet cable Type A, B, C, R

Our Profinet cables

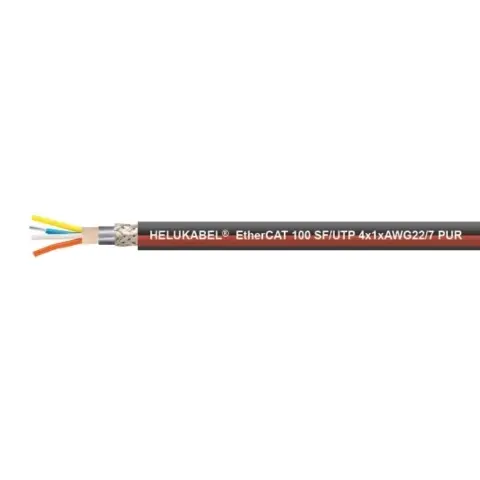

5. EtherCAT cables

5. EtherCAT cables

Our EtherCAT cables

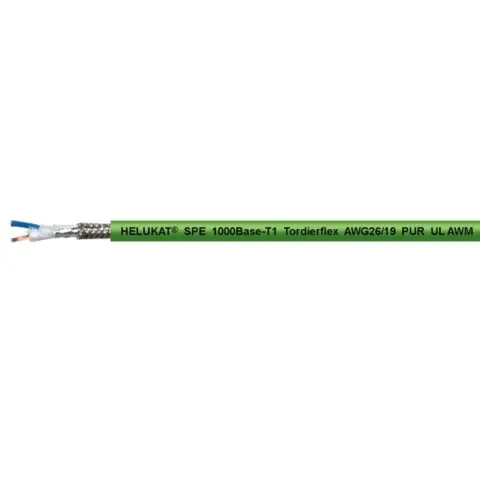

6. Single Pair Ethernet (SPE) cables

6. Single Pair Ethernet (SPE) cables

Our SPE cables

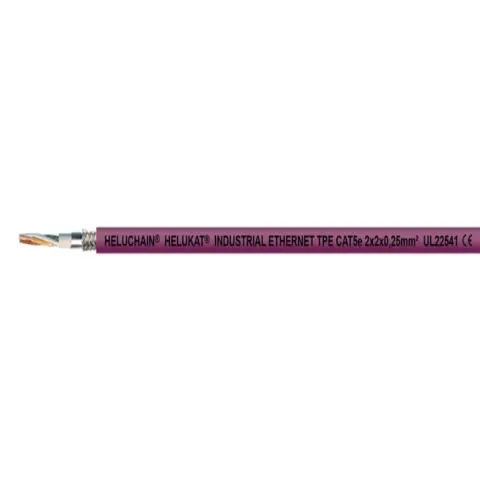

7. HELUCHAIN Ethernet cables

7. HELUCHAIN Ethernet cables

Our HELUCHAIN cables

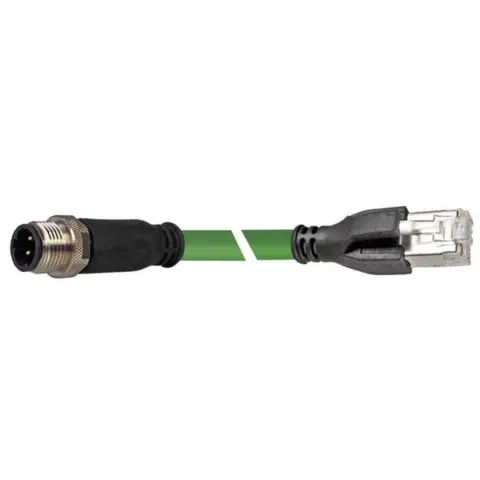

8. Industrial Ethernet Cable Assemblies

8. Industrial Ethernet Cable Assemblies

Our cables

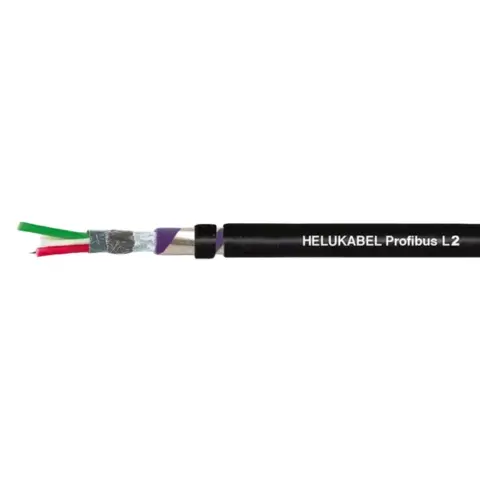

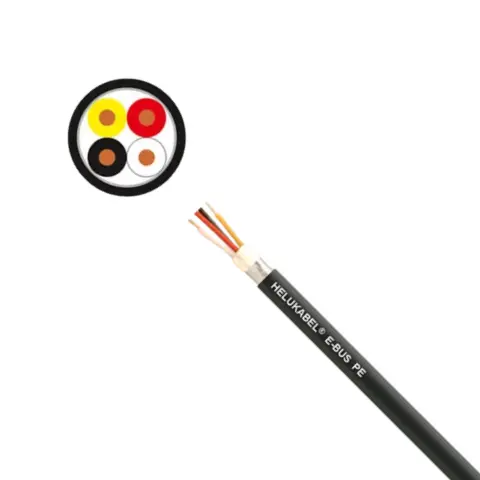

9. Bus cables

9. Bus cables

Our product range

Outstanding features of HELUKABEL's ethernet and bus cables

1. HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC cables

PROFInet Type A, FastConnect (SK) capable, highly flame-retardant

HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC for fixed installation in industrial networks, rugged. It guarantees excellent transmission characteristics and may be used even under the harshest conditions. The cable listed here corresponds to PROFInet Type A and is designed for normal fixed installation in industrial environments

2. HELUKAT® 600 CAT.7e S/FTP FRNC STATIC cables

CC-Link IE Field certified, performance up to 1000 MHz, flame-retardant, low smoke

They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s or ISDN absolutely trouble-free. Likewise, the mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.

HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC
HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC
HELUKAT® 600 CAT.7e S/FTP FRNC STATIC
HELUKAT® 600 CAT.7e S/FTP FRNC STATIC

Features of HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC

  • Bare conductor, PVC insulation, PVC outer sheath in green colour
  • Screening: Al foil and và tinned copper braid
  • Temperature range: -40°C to 80°C (fixed installation), -20°C to +60°C (during instlaation)
  • Resistant to oil, UV radiation, weathering effects
  • Highly flame-retardant
  • Minimum bending radius: 15x Outer-Ø (flexing), 7x Outer-Ø (fixed installation)

Datasheet of HELUKAT® PROFInet A CAT.5e

Features of HELUKAT® 600 CAT.7e S/FTP FRNC STATIC

  • Bare copper conductor, PE insulation, FRNC outer sheath, halogen-free
  • Screening: tinned copper braid
  • Temperature range: -20°C to 60°C (fixed installation), 0°C to +50°C (during installtion)
  • Flame-retardant
  • Minimum bending radius: 8x Outer-Ø (flexing), 4x Outer-Ø (fixed installation)

Datasheet of HELUKAT® 600 CAT.7e

3. HELUKAT® 100S CAT.5e 30 V 4C SF/UTP PUR CHAIN

Industrial Ethernet cable / Cat. 5e acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-6, DIN EN 50288-2-2, UL-Std. 758 (AWM) Style 20963

This cable is designed for use in cable carriers and the recurring loads cause by moving machine components. Thanks to the PU sheath, it also offers excellent resistance to common mineral oils, greases and cooling lubricants.

4. HELUKAT® 100IND CAT.5 WK SF/UTP X-FRNC FLEX

Industrial Ethernet cable / Cat. 5 acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-3, DIN EN 50288-2-2, UL-Std. 758 (AWM) Style 21281

This cable is designed specially for demanding temperature requirements such as those encountered in wind turbines. Radiation cross-linking provides improved thermal stability as well as good oil resitance.

Cáp ethernet HELUKAT® 100S
Cáp ethernet HELUKAT® 100IND CAT.5 WK SF_UTP X-FRNC

Features of HELUKAT® 100S CAT.5e 30 V 4C SF/UTP PUR CHAIN

  • Bare conductor, Polyolefin insulation, PUR outer sheath in green colour
  • Screening: Al foil and và tinned copper braid
  • Temperature range: -30°C to 60°C (fixed installation), -40°C to +80°C (during instlaation)
  • Resistant to: oil, UV radiation, hydrolysis, microbes, coolants, greases
  • Abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
  • Flame-retardant, halogen-free
  • Minimum bending radius: 15x Outer-Ø (flexing), 7x Outer-Ø (fixed installation)

Datasheet of HELUKAT® 100S CAT.5e

Features of HELUKAT® 100IND CAT.5 WK SF/UTP X-FRNC FLEX

  • Copper wire tinned, XLPE insulation, X-FRNC outer sheath in black colour
  • Screening: Al foil and tinned copper braid
  • Temperature range: -20°C to 60°C (fixed installation), 0°C to +50°C (during installtion)
  • Resistant to: oil, UV radiation, microbes, coolants, acids, alkalis
  • Abrasion-resistant, notch-resistant, low adhesion
  • Suitable for outdoor use
  • Flame-retardant, halogen-free
  • Minimum bending radius: 8x Outer-Ø (flexing), 4x Outer-Ø (fixed installation)

Datasheet of HELUKAT® 100IND CAT.5 WK

Cat 7 ethernet cables

Cat 7 Ethernet cables are used in both tertiary and secondary network layers. This cable type stands out for its large performance reserve and superior transmission capabilities, enabling stable, trouble-free deployment for many different network services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, Token Ring 4/16 Mbit/s, or ISDN.

In addition to standard cables, HELUKABEL also offers specialized Cat 7 cable lines for offshore applications, robotics applications, cable chains...

HELUKAT® 600 CAT.7e S/FTP FRNC STATIC Ethernet Cable
7/7A/7e cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKAT® 600 CAT.7e S/FTP FRNC STATIC4 x 2 x AWG 23 /1FRNCViolet, orangeCC-Link IE Field, up to 1000 MHz 80810
HELUKAT® 600IND CAT.7e S/FTP PUR STATIC4 x 2 x AWG 23 /1PURGreen, grey, blue, redCC-Link IE Field, up to 1200 MHz 801197
HELUKAT® 600IND CAT.7e S/FTP FRNC STATIC4 x 2 x AWG 23 /1FRNCGreenUp to 1200 MHz, flame-retardant, low smoke 11007775
HELUKAT® 1200IND CAT.7A S/FTP PUR STATIC4 x 2 x AWG 23 /1PURGreenUp to 1200 MHz 805680
HELUKAT® 1000IND CAT.7A S/FTP PUR ROBUSTFLEX4 x 2 x AWG 26/7PURGreenUp to 1000 MHz 805684
HELUKAT® 600S CAT.7 SF/FTP PUR CHAIN4 x 2 x AWG 24/7PURGreenCC-Link IE Field certified 805614
HELUKAT® 600T CAT.7 SF/FTP PUR TORSION4 x 2 x AWG 24/7 805828
HELUKAT® 600IND CAT.7 S/FTP FRNC SHIPLINE4 x 2 x AWG 24/7FRNCBlackMarine and Offshore, flame-retardant, low smoke, DNV certificate 11021853
HELUKAT® 600IND CAT.7 S/FTP PUR ROBUSTFLEX4 x 2 x AWG 26/7PURGreen  802184

Cat 6 ethernet cables

Cat 6 cable is designed to support data transmission at frequencies up to 250 MHz, meeting the requirements of Gigabit Ethernet applications and capable of supporting 10 Gigabit Ethernet over short distances, making it suitable for office networks, buildings...

Meanwhile, Cat 6A increases bandwidth to 500 MHz, double that of Cat 6, helping to maintain stable 10 Gigabit Ethernet speeds at distances up to 100 m. Cat 6A is the ideal choice for network systems that demand high performance, long-term stability, and future scalability.

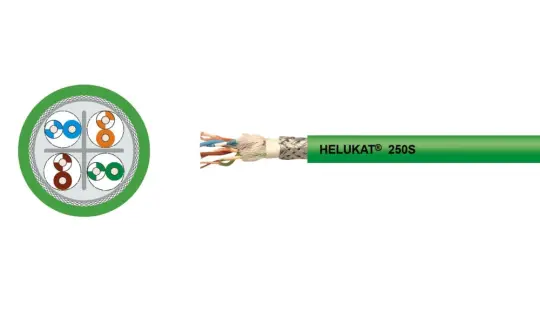

HELUKAT® 250S CAT.6 CMX SF/UTP PUR CHAIN Ethernet Cable
Cat 6/6A cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKAT® 500IND CAT.6A S/FTP FRNC STATIC4 x 2 x AWG 22 /1FRNCGreenFlame-retardant, low smoke 11007777
HELUKAT® 500IND CAT.6A SK S/FTP PVC STATIC4 x 2 x AWG 22 /1PVCGreenCC-Link IE Field certified, FastConnect (SK) capable, highly flame-retardant 803693
HELUKAT® 500IND CAT.6A S/FTP PVC FLEX4 x 2 x AWG 23/7PVCBlackfor use in
CP-Link 4 systems from Beckhoff		 11023769
HELUKAT® 500S CAT.6A SF/FTP PUR CHAIN4 x 2 x AWG 24/7PURGreenHalogen-free, flame-retardant 805703
HELUKAT® 500S CAT.6A SF/FTP SLIM PUR CHAIN4 x 2 x AWG 26/7PURGreenHalogen-free, flame-retardant 805548
HELUKAT® 500IND CAT.6A S/FTP LS0H EXTRAFLEX4 x 2 x AWG 26/7LSZHGreenExtremely flexible 11023932
HELUKAT® 250IND CAT.6 CMG SF/UTP PVC STATIC4 x 2 x AWG 24 /1PVCGreenFRNC inner shell, highly flame-retardant 805655
HELUKAT® 250IND CAT.6 AWM SF/UTP PVC STATIC4 x 2 x AWG 24 /1PVCGreenFRNC inner sheath, flame-retardant 805681
HELUKAT® 250S CAT.6 CMG SF/UTP PVC CHAIN4 x 2 x AWG 24/7PVCGreenHighly flame-retardant 805658
HELUKAT® 250S CAT.6 CMX SF/UTP PUR CHAIN4 x 2 x AWG 26/19PURGreenLow smoke 803387

Cat 5 ethernet cables

Cat 5 cables support bandwidths up to 100 MHz; data transfer rates are 100 Mbit/s (2 pairs) and 1 Gbit/s (4 pairs).

In some Cat 5e cable lines, the bandwidth can reach up to 200 MHz.

HELUKAT® 100IND CAT.5 WK SF_UTP X-FRNC Ethernet Cable
Cat 5/5e cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKAT® 100IND CAT.5 SF/UTP FRNC STATIC2 x 2 x AWG 24 /1FRNCBlueFlame-retardant, low smoke 805699
HELUKAT® 100IND CAT.5e SF/UTP FRNC FLEX2 x 2 x AWG 26/7 805701
HELUKAT® 200IND CAT.5e SF/UTP PUR ROBUSTFLEX4 x 2 x AWG 26/7PURGreyFlame-retardant, halogen-free 800068
HELUKAT® 100IND CAT.5 WK SF/UTP X-FRNC FLEX2 x 2 x AWG 22/7Cross-linked FRNCBlackFlame-retardant, heat resistant, low smoke 802293
HELUKAT® 100S CAT.5e 1000 V SF/UTP PUR CHAIN2 x 2 x AWG 26/19PURGreenFlame-retardant, UL/CSA, for cable chains 11007779
HELUKAT® 200S CAT.5 4C SF/UTP PUR CHAIN4 x 1 x AWG 24/19PURGreenFlame-retardant, for cable chains 800088
HELUKAT® 100T CAT.5 SF/UTP PUR TORSION4 x 2 x AWG 26/19PURGreenFlame-retardant, UL/CSA 800067

Profinet cable Type A, B, C, R

  • Type A (Stationary): For fixed installations in control cabinets
  • Type B (Moving): For cables subjected to infrequent movement
  • Type C (Highly flexible): Used for continuous motion applications in cable chains
  • Type R (Torsion, Robotics): Used for applications with high torsional stress, such as in industrial robot systems.

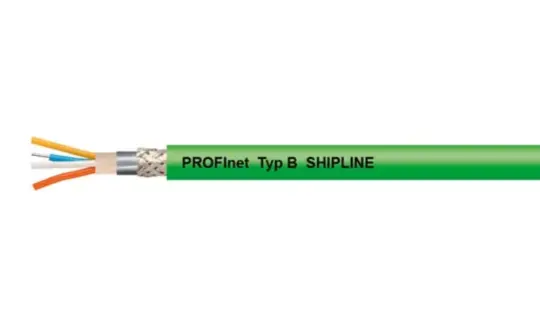

HELUKAT® PROFInet B CAT.5e SF/UTP FRNC SHIPLINE Ethernet Cable
Profinet cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC2 x 2 x AWG 22 /1PVCGreenUL/CSA, FastConnect (SK) capable, highly flame-retardant 800653
HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC PLTC-ER2 x 2 x AWG 22 /1PVCGreen
  • FastConnect (SK) capable
  • DESINA compliant
 11018984
HELUKAT® PROFInet A CAT.5e SF/UTP FRNC STATIC2 x 2 x AWG 22 /1FRNCGreen
  • FastConnect (SK) capable
  • 600V UL
 805653
HELUKAT® PROFInet A CAT.5e SF/UTP PE STATIC ARMORED2 x 2 x AWG 22 /1PEBlackRodent protection armour 801650
HELUKAT® PROFInet B CAT.5e SF/UTP FRNC FLEX2 x 2 x AWG 22/7FRNCGreen
  • FastConnect (SK) compatible
  • 600V UL
 805654
HELUKAT® PROFInet B CAT.5e SF/UTP FRNC FLEX Cca2 x 2 x AWG 22/7FRNCGreenCPR class: Cca s1a d2 a1, SUN RES 11027770
HELUKAT® PROFInet B CAT.5e HYBRID SF/UTP FRNC FLEX2 x 2 x AWG 22/7 + 4 x 1.5 mm²FRNCGreenFlame-retardant, halogen-free 801651
HELUKAT® PROFInet B CAT.5e SF/UTP FRNC SHIPLINE2 x 2 x AWG 22/7FRNCGreen
  • FastConnect (SK) capable
  • Marine and Offshore
 802185
HELUKAT® PROFInet B CAT.5e SF/UTP PVC FESTOON2 x 2 x AWG 22/7PVCGreen
  • FastConnect (SK) capable
  • Festoon application
 803295
HELUKAT® PROFInet C CAT.5e SF/UTP PVC CHAIN2 x 2 x AWG 22/7PVCGreen
  • FastConnect (SK) capable
  • Flame-retardant
 802914
HELUKAT® PROFInet C CAT.5e SF/UTP PUR CHAIN2 x 2 x AWG 22/7PURGreen 800655
HELUKAT® PROFInet R+ CAT.5e SF/UTP PUR ROBOTIC2 x 2 x AWG 22/19PURGreen1000V UL approval 11007800

EtherCAT cables

These cables are suitable for EtherCAT classification for moving cables and are capable of withstanding continuous mechanical loads over extended periods.

The PUR jacket version is UL AWM Style certified, offering superior durability for use in cable chains, along with high chemical resistance, making it suitable for harsh industrial environments.

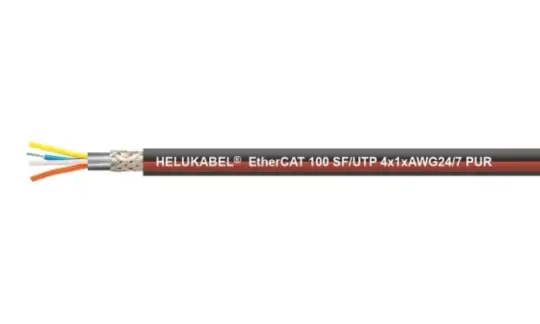

HELUKABEL® EtherCAT-P100S-M CAT.5e SF/UTP PUR CHAIN Ethernet Cable
EtherCAT cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKABEL® EtherCAT-P100S-L CAT.5e SF/UTP PUR CHAIN4 x 1 x AWG 22/7PURBlack - red
  • up to 1 Gigabit
  • EtherCAT-L
  • 300V UL approval
 11007522
HELUKABEL® EtherCAT-P100S-M CAT.5e SF/UTP PUR CHAIN4 x 1 x AWG 24/7
  • up to 1 Gigabit
  • EtherCAT-M
  • 300V UL approval
 11007523

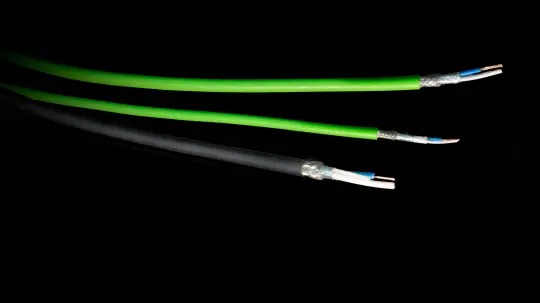

SPE cables

With Single Pair Ethernet (SPE), a single twisted pair cable can simultaneously transmit power and data at speeds up to gigabit, saving installation space and costs.

SPE cables are widely used in the automotive industry. For harsh industrial environments, there are also specialized versions suitable for installation in drag chains and industrial robot systems.

SPE plays a pivotal role in the Industrial Internet of Things (IIoT) as well as in Industry 4.0 solutions.

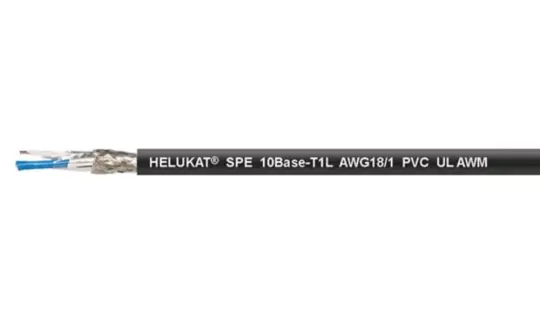

HELUKAT® SPE Type A 10BASE-T1L PVC STATIC Ethernet Cable
SPE cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUKAT® SPE Type C 1000BASE-T1 THICK SF/UTP PUR CHAIN1 x 2 x AWG 22/19PURGreen
  • up to 1 Gigabit
  • 600V UL approval
 11018068
HELUKAT® SPE Type C 1000BASE-T1 THIN SF/UTP PUR CHAIN1 x 2 x AWG 26/19 11018067
HELUKAT® SPE Type R 1000BASE-T1 SF/UTP PUR ROBOTIC1 x 2 x AWG 26/19
  • up to 1 Gigabit
  • DESINA compliant
 11019818
HELUKAT® SPE Type B 1000BASE-T1 HYBRID SF/UTP PUR FLEX1 x 2 x AWG 26/7 + 4 x AWG 16/19PURBlackUL/CSA, halogen-free, UV-resistant11022604
HELUKAT® SPE Type A 10BASE-T1L PVC STATIC1 x 2 x AWG 18 /1PVCBlack
  • UL/CSA, UV resistant
  • Distance up to 1,000m
  • Up to 10 Megabit APL
 11017748

HELUCHAIN ethernet cables

To ensure stable data transmission in high-motion industrial environments, HELUKABEL has developed the new generation of HELUCHAIN ethernet cables. Thanks to its TPE outer sheath with superior abrasion resistance, HELUCHAIN is particularly suitable for cable chain systems and is now available for many common industrial bus standards.

Learn about the features of HELUCHAIN® Ethernet cables

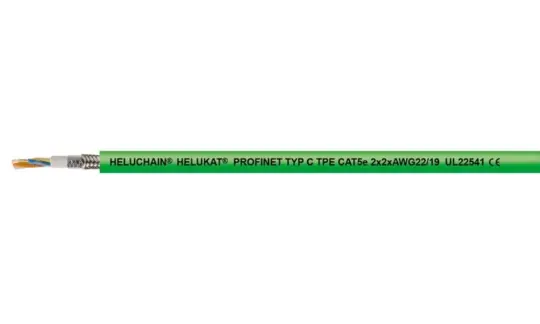

HELUCHAIN® HELUKAT® PROFInet C CAT.5e SF/UTP TPE Ethernet Cable
HELUCHAIN ethernet cablesNumber of cores x AWGSheath materialSheath colorCharacteristicsPart number
HELUCHAIN® HELUKAT® 100S CAT.5e 4C SF/UTP TPE2 x 2 x AWG 24/19TPEViolet
  • High abrasion resistance with a tight bending radius
  • TPE inner sheath for long travel distances
  • 1000 V / +90°C UL approval
 11027793
HELUCHAIN® HELUKAT® 250S CAT.6 SF/UTP TPE4 x 2 x AWG 25/19 11027808
HELUCHAIN® HELUKAT® 100S CAT.5e 4P SF/UTP TPE4 x 2 x 0.18 /19 11027792
HELUCHAIN® HELUKAT® PROFInet C CAT.5e SF/UTP TPE2 x 2 x AWG 22/19Green 11027791
HELUCHAIN® HELUKAT® 500S CAT.6A S/SFTP TPE4 x 2 x AWG 26/19Purple
  • High abrasion resistance with a tight bending radius
  • 1000 V / +90°C UL approval
 11027794
HELUCHAIN® HELUKAT® 600S CAT.7 S/SFTP TPE4 x 2 x AWG 26/19 11027809
HELUCHAIN® HELUKAT® 500S CAT.6A S/SFTP TPE4 x 2 x AWG 26/19 11027794

Order via HELUKABEL Vietnam E-store

Tiki Shopee Lazada

FAQs about ethernet and bus cables

This is a specialized network cable for fixed installation in buildings, with a sheath made of a material that is able to resist fire according to international IEC standards. The production process of the cable does not contain any harmful substances, especially in case of fire, the cable will not generate harmful Halogen gas to health. The product has effective resistance to wear and oil.

This is a data cable with FRNC or PUR sheath. The industrial CAT.5 + 5e Ethernet cable is notable for its fire resistance, oil resistance, abrasion resistance, and being totally Halogen-free, which is not harmful to human health in case of fire. The product is widely used in industrial environments due to its flexible installation and ability to withstand harsh conditions.

This is a combination of top cable lines in the CAT.5 + 5e group when it comes to flexibility and suitability for all terrains and construction structures. Industrial Ethernet cable CAT.5 + 5e is protected by a PU casing layer, which is resistant to oil and not corroded by lubricating oils used in cooling machines. The Ethernet cable operates stably for continuous signal transmission.

The Ethernet cable used for fixed installation is a type of cable with a PVC plastic outer layer, allowing for installation in harsh conditions. The cable construction allows for stable and fast signal transmission. Therefore, the product is widely used in large industrial areas or manufacturing plants.

The Industrial CAT.6 + 6A Ethernet cable is designed with a PVC or PUR cable jacket to minimize the impact of external environment on the signal transmission process of the cable. This helps the cable to have excellent information transmission characteristics even in difficult and harsh conditions.

These are cable lines used in industrial environments with characteristics of low smoke and no halogen. This Ethernet cable has high reserve capacity and superior performance. This allows you to apply the product in communication technologies such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, Token Ring 4/16 Mbit/s or ISDN without difficulty.
These types of cables comply with the Type B anti-interference standard according to EN55022, as well as anti-interference capabilities according to EN55024.

This Ethernet cable is ideal for harsh industrial environments due to its outer PU jacket that is halogen-free. This cable can be configured with a standard RJ45 plug (industrial and office versions), as well as with some Sub-D and M12 plugs.

The industrial Ethernet cable series CAT.6 + 6A provides excellent transmission characteristics in challenging environmental conditions. The product is optimized for typical twisted applications in robot manufacturing.

HELUKABEL currently offers several cable types specifically designed for Single Pair Ethernet technology. Below are the available products:

  • 11017748 – SPE 10BASE-T1L – for fixed installation
  • 11018067 – SPE 1000BASE-T1 – AWG26 – for drag chains
  • 11018068 – SPE 1000BASE-T1 – AWG22 – for drag chains

HELUKABEL's product portfolio for bus cables includes:

  • Industrial Ethernet
  • PROFInet
  • Profibus DP; Profibus SK; Profibus PA
  • FOUNDATION™ Fieldbus
  • HMCB bus cables for digital encoder cable
  • USB
  • CAN BUS
  • Multibus
  • AS-Interface
  • DeviceNet™
  • CC-Link
  • Safety BUS
  • LON
  • MOD-Bus
  • EIB / E-BUS / KNX
  • Bus Cables for Patient Communication Systems
