HELUKABEL | TOP 4 POPULAR CABLE GLANDS

Cable Gland is the name for a cable tightening screw or cable connector. Cable nuts are applied to control cables in hazardous or harsh environments, and absorb sparks of flames, blocking contaminants such as dust, dirt, and liquids.

What are cable glands?

Cable glands are cable tightening screws, the other name is a cable connector. Cable glands play the role of connecting and fixing control cables on cable trays, and electrical cabinets to ensure that there is no ingress of water, dirt, or explosion-proof substances. Cable glands are made from materials such as Plastic, copper, Nickel plated copper, stainless steel, or aluminum.

Depending on the installation environment and the specificity of the manufacturing field, there are many types of the cable gland with corresponding characteristics. The cable gland has metric, PG, G, NPT...

>>See more: Cable glands from HELUKABEL

Applications

The cable gland is applied in environments with high temperatures and hazardous substances, often exposed to sparks or containing a lot of dirt and liquids. Cable tightening screws ensure that the effects of the outside environment cannot penetrate inside the cable tray or electrical cabinet.

Cable tightening screws prevent the cable from being twisted or stretched, helping to maintain a stable connection with continuous, uninterrupted performance. Fasteners are designed in many different sizes, designs, and materials. Environments for cable gland application are:

• Factory and manufacturing machinery

• Robot Factory

• Factory under automation technology

• Shipyard

• Widely applied in railway technology and installation technology.

Some popular cable glands

Below is a summary of four popular cable glands at HELUKABEL Vietnam.

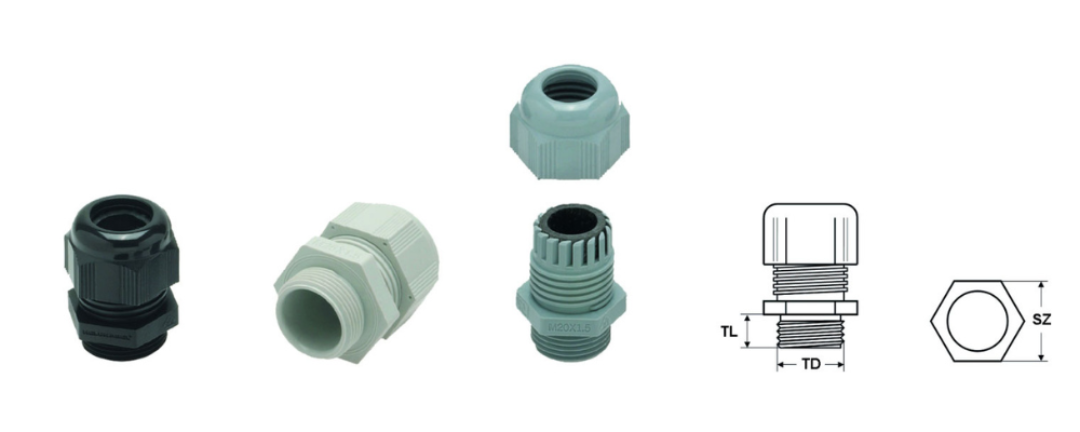

HELUTOP® HT

Technical Data

• Plastic cable gland with vibration protection.

• Temperature range -20°C to +100°C

• Protection class IP 68 - 5 bar / IP 69K

Structure

• Material: Polyamide (PA) 6

• Seal: Chloroprene rubber (CR)

>>See more: The application of cable gland HELUTOP HT Clean

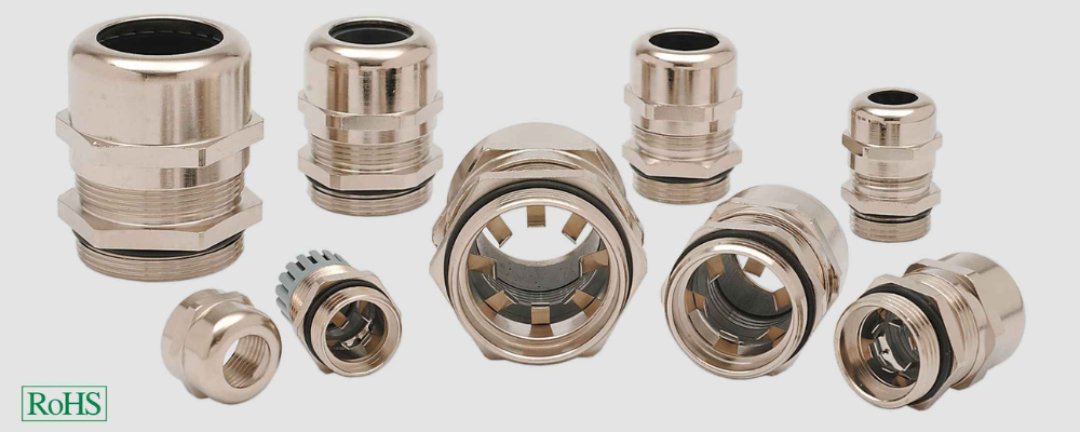

HELUTOP® HT-MS

Technical Data

• Nickel-plated brass cable gland.

• Temperature range -20°C to +100°C

• short term -40°C to +150°C

• Protection class IP 68 - 5 bar / IP 69K

Structure

• Material: Brass, nickel plated
• Clamp: Polyamide (PA) 6
• Seal: Chloroprene rubber (CR)
• O-ring: Nitrile butadiene rubber (NBR)

>>Find out more: When should we use cable gland HELUTOP HT-MS

HELUTOP® MS-EP

Technical data

• Brass, nickel plated

• Contact system: Copper-Beryllium

• Clamp: Polyamide PA 6

• Seal: Chloroprene rubber (CR)

• O-ring: NBR

• Protection class: IP 68 - 5 bar

• Temperature range: -40°C up to +100°C

• Test standard: EN50262

• Contact system: patented

Properties

• Optimum strain relief through clamping plates

• No damage to shield during assembly or disassembly by moving contact ring

• Contact is made automatically when the gland is closed

• Excellent shield damping and current deflection

• High savings achieved in time and assembly costs

HELUTOP® MS-EP4

Technical data

• Gland body: Brass, nickel-plated

• Contact spring: Copper-Beryllium

• Sealing ring: Neoprene

• Clamp insert: Polyamide PA6

• O-Ring: Buna-N

• Ingress Protection: IP68

• Temperature range: -40°C up to +100°C
• Manufactured according to: to EN 50262

Cable glands are an effective support tool to help protect the cable core from the impact of the external environment. Besides, it ensures signal transmission always works well in harsh environments. At HELUKABEL, we not only manufacture power cords and control cables but also have the necessary accessories in electrical connection technology, our cable glands help to meet the installation standards of any factory.
