How to differentiate MC4-Evo 2A’s male and female couplers?

In solar power systems, the MC4-Evo 2A is a specialized cable connector designed to ensure safety when linking photovoltaic modules. Correctly identifying the male and female connectors is not only essential for proper installation but also offers several key benefits, such as:

• Electrical safety: Incorrect wiring can lead to short circuits or system damage.
• Ease of installation & maintenance: Knowing which end corresponds to positive (+) and which to negative (–) helps speed up the process and reduce errors.
• International compliance: MC4 connectors are standardized, so proper identification ensures your system meets global technical standards.
• Extended system lifespan: Correct installation minimizes arcing and lowers the risk of connector failure over time.

According to the official documentation provided by Stäubli, the most reliable way to distinguish them is by checking the inner contact:

• Male coupler: contains a metal contact in the form of a plug – a protruding pin.
• Female coupler: contains a metal contact in the form of a socket – a hollow receptacle that receives the plug.

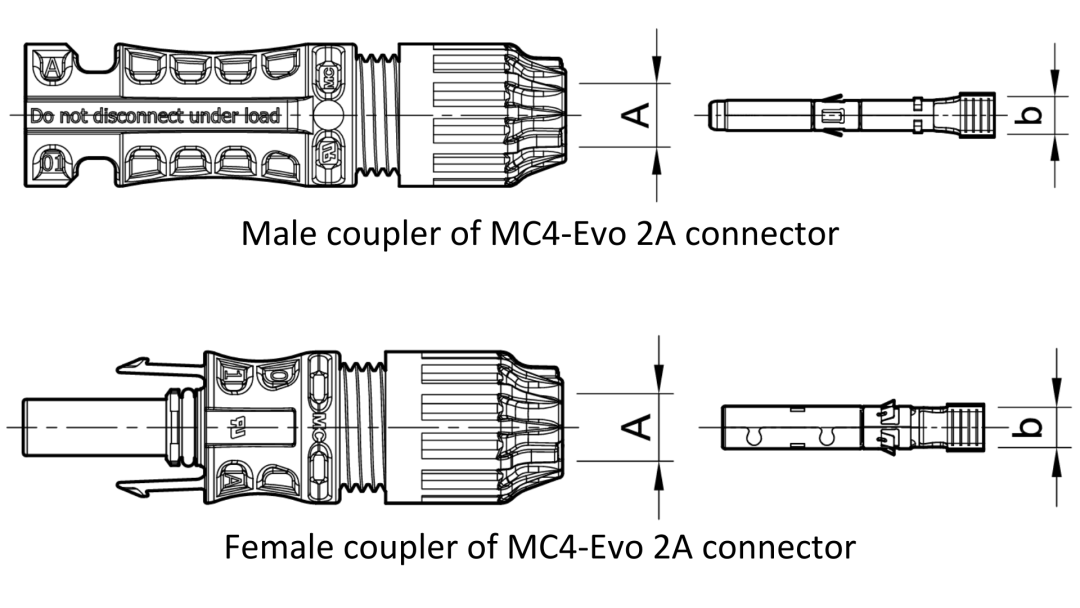

By observing the outer housing that comes with the contact, you can also easily identify them:

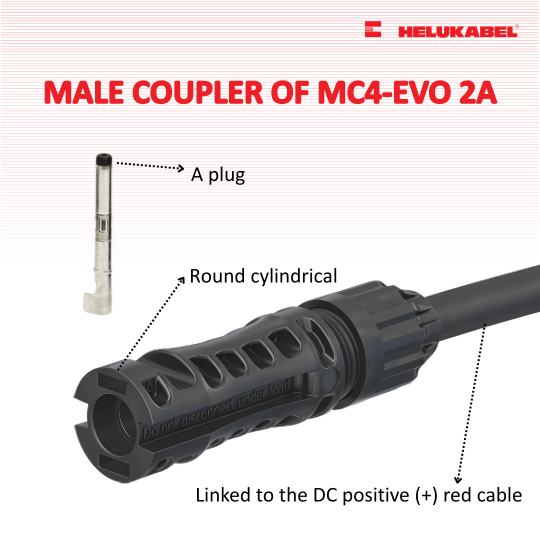

• Male coupler: typically has a round cylindrical housing, compact to hold.

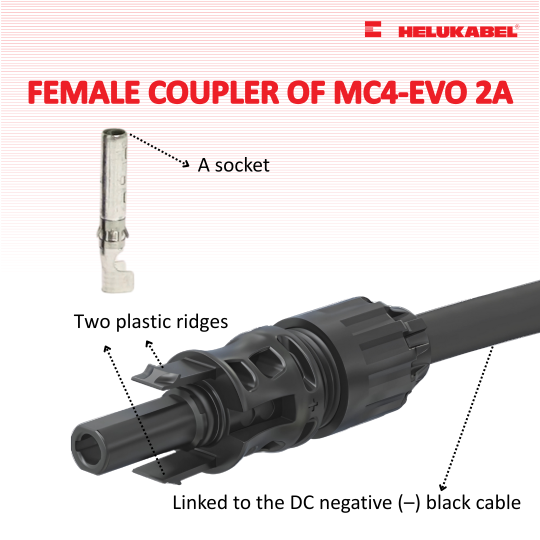

• Female coupler: usually has two plastic ridges on the housing, making it easy to recognize by touch.

In terms of the connection principle, the differences lie in:

• The plug contact of the male coupler is generally linked to the DC positive (+) red cable.
• The socket contact of the female coupler is generally linked to the DC negative (–) black cable.
• During connection, the male plug inserts into the female socket, and the locking mechanism ensures a secure, waterproof, and tamper-proof fit.

The MC4-Evo 2A connector is manufactured with Stäubli’s Multilam technology and certified according to standards such as TÜV and IEC. It features high durability, with IP65/IP68 protection ratings for dust and water resistance, making it ideal for outdoor photovoltaic systems while ensuring reliable electrical safety.
