The meanings behind the 3 colors of DC SOLARFLEX cables in PV systems
Color is not just about identification, it's the language of safety in power systems. DC SOLARFLEX cables come in three different colors: red, black, and blue. Do you know what each color represents and how it’s used?
Why is cable color coding important in DC systems?
In solar power setups, the direct current (DC) flows in one constant direction, unlike alternating current (AC). Confusing the positive and negative cables can lead to short circuits, fire hazards, or inverter damage, potentially halting the entire system.
That’s why cable color coding serves as a visual safety signal during installation, maintenance, and operation. Distinguishing the cable colors is a basic yet critical step to ensure accurate connections, easier troubleshooting, and safer system performance.

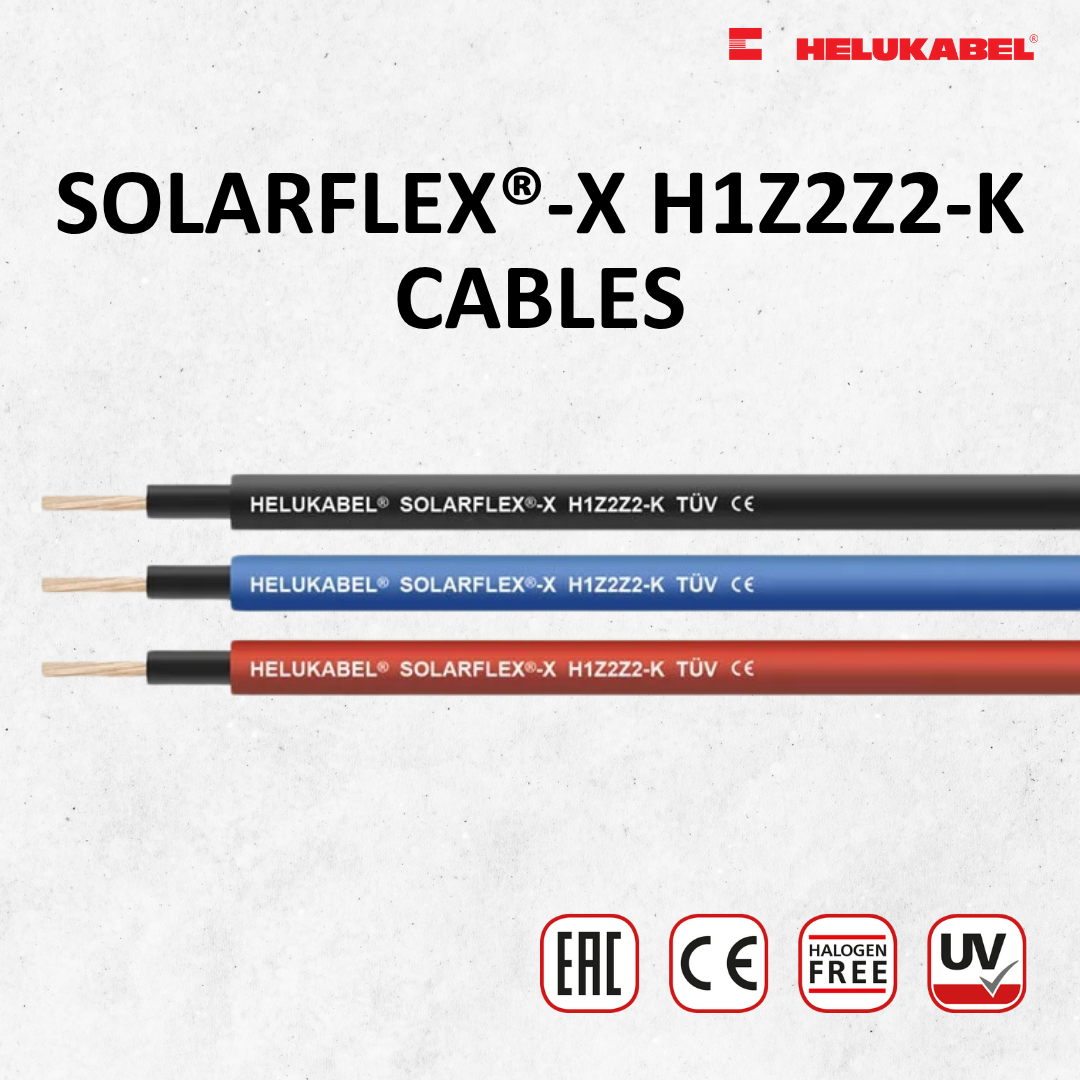

Understanding the 3 colors of HELUKABEL SOLARFLEX cables

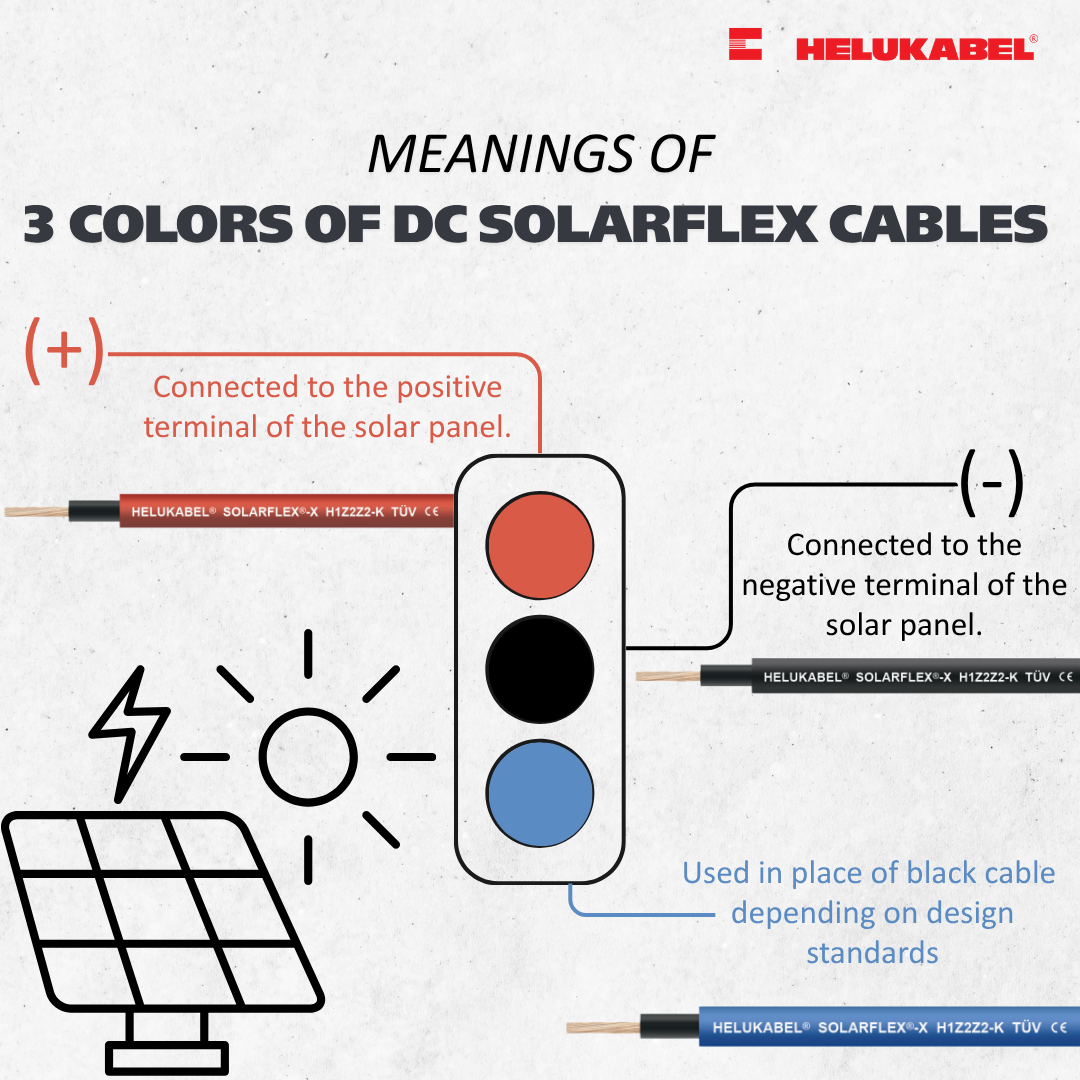

To meet the technical demands of solar energy systems, each SOLARFLEX cable color has a distinct role:
- Red – positive conductor (+)
This cable carries the positive voltage from the solar panels to the inverter. Its bright red color ensures easy identification and prevents polarity mistakes.
- Black – negative conductor (-)
This cable completes the circuit by carrying the return current. It usually runs parallel to the red cable, maintaining a balanced DC loop.
- Blue – alternative negative conductor
In large-scale installations like solar farms, blue cables may replace black ones for clearer distinction or to meet specific technical standards. Blue is often used to mark special zones or help with safe circuit separation. While not as common as red and black, blue cables are just as reliable and safe when applied correctly.

How many meters of red and black SOLARFLEX cables do you need? Are you considering adding blue cables to meet specific design or safety standards? Get in touch with us now, and we’ll help you with your cable lengths and system requirements.
