Characteristics of 4 groups of instrument cables for the oil and gas industry
Instrumentation cables and compensation cables are used in the oil and gas industry as well as in the chemical, pharmaceutical, and F&B industries.
1. HELUKABEL expands its portfolio in the oil and gas industry
At HELUKABEL, we are expanding into new markets with Instrumentation Cables and Thermocouple Extension Cables for applications in the oil and gas sector as well as the chemical, pharmaceutical, and food industries.
1.1 Instrumentation cables
Instrumentation Cables are used wherever processes need to be controlled and monitored. For example, this type of cable transmits measurement data on temperature, pressure, or flow rate and is used to control valves, temperature controllers, and signal lights. Particularly in onshore plants such as oil refineries or chemical plants, the distance between the control room and the components requiring control signals (such as valves, control lights, or sensors) can be very long. To ensure error-free signal transmission over these long distances, our instrumentation signal cables are an ideal solution for you.
1.2 Thermocouple extension cables
Commonly used in temperature measurement and control systems, especially for connecting to temperature sensors (thermocouples) to transmit temperature measurement signals to controllers or monitoring devices.
2. Features of the 4 new groups of cables for the oil and gas industry

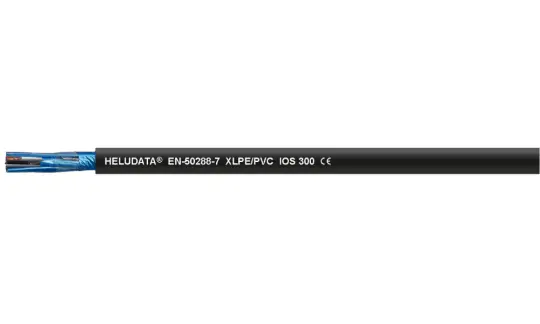

2.1 HELUDATA® EN-50288-7 instrumentation cables
- Instrumentation cable according to EN 50288-7
- Twisted pairs in triads and quads; cross-section 0.5 - 2.5 mm²
- 4 types of cable structures: with and without armor, with both individual shielding and overall shielding, and with only overall shielding.
- 3 types of cable structure combinations (core/protective sheath): PVC/PVC & XLPE/PVC & XLPE/LS0H
2.2 HELUDATA® EN-50288-7 FIRE RES instrumentation cable
- Instrument cable with improved fire resistance, ensuring functional integrity even in fire conditions.
- Fire resistance according to IEC 60331-21
- 4 types of cable structures: with and without armor, with both individual shielding and overall shielding, and with only overall shielding.
- Halogen-free

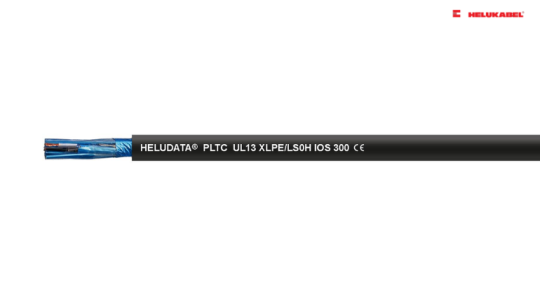

2.3 HELUDATA® PLTC UL13 instrumentation cable
- UL counterpart for HELUDATA® EN-50288-7 cable:
- Power Limited Tray Cable (PLTC) is used for direct installation on cable trays (no protective conduit required).
- Two core/sheath material options: PVC/PVC (heat-resistant up to 105 °C) or XLPE/LS0H (halogen-free, low smoke).
- Structure: twisted pairs or triads, cross-section 18–14 AWG.

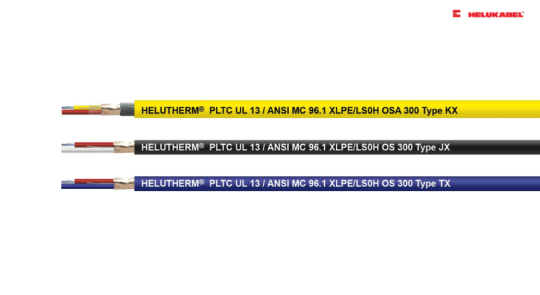

2.4 HELUTHERM® PLTC UL 13 / ANSI MC 96.1 thermalcouple extension cable
- Thermalcouple extension cable according to ANSI MC 96.1 standard, certified to meet UL 13 PLTC standard
- Used to measure temperature
- Power Limited Tray Cable (PLTC) is used for direct installation on cable trays (no protective conduit required).
- Two core/sheath material options: PVC/PVC (heat-resistant up to 105 °C) or XLPE/LS0H (halogen-free, low smoke).
- Versions: KX; JX; EX; TX
3. Comparison of EN 50288-7 instrument cable and PLTC UL13 instrument cable
| Instrument cable EN 50288-7 | Instrument cable PLTC UL13 | |
| Cross-section | 0.5–2.5 mm² | AWG 18 - 14 |
| Insulation | XLPE, PVC | XLPE, PVC |
| Core identification | Number coded IEC 60189-2 or IEC 60708-1 | By color white, black, (red) |
| Shielding | AL/PE foil with tin coating copper drain wire (individual and overall) | AL/PE foil with tin coating copper drain wire (individual and overall) |
| Outer sheath | PVC, LS0H | XLPE, PVC |
| Temperature | 70°C or 90°C | 75°C to 80°C 90°C to 105°C at the core |
| Voltage | 300 V or 500 V | 300 V |
4. Other cables in use for the oil and gas industry

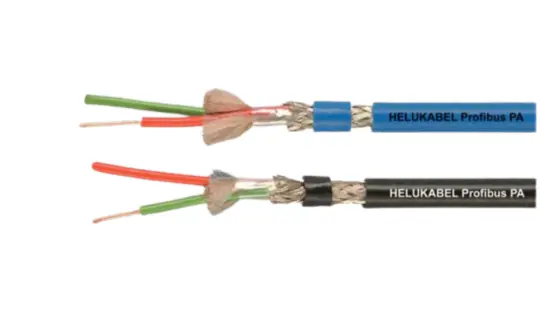

4.1 Profibus PA cable
- Profibus PA cable
- Profibus PA armored cable
- Profibus PA Long Distance Cable
4.2 Foundation Fieldbus Cable
- FOUNDATION™ Fieldbus Flexible Basic Cable
- FOUNDATION™ Fieldbus flexible type A cable
- FOUNDATION™ Fieldbus flexible type A armored cable
- FOUNDATION™ Fieldbus flexible type A cable + gnye
4.3 SPE Single Pair Ethernet Cable 1x2xAWG18 10BASE-T1L
- SPE Single Pair Ethernet Datasheet 1x2xAWG18 10BASE-T1L
5. Cable glands for the oil and gas industry
In addition, we also provide the following cable accessory solutions:
5.1 Explosion-proof cable gland HELUTOP®HT-MS-EX-d
For cables and conductors without armor
- Data sheet HELUTOP®HT-MS-EX-d
5.2 Explosion-proof cable gland HELUTOP®HT-MS-EX-d 1 EMC
For shielded cables, no armor layer
- Data sheet HELUTOP®HT-MS-EX-d 1 EMV

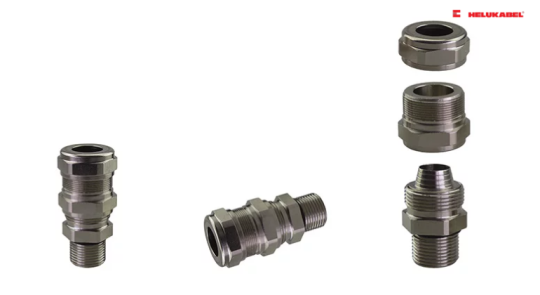

5.3 Explosion-proof cable gland HELUTOP®HT-MS-EX-d/e4
For cables and conductors with armor
- Data sheet HELUTOP®HT-MS-EX-d/e4
If you still have questions, don't hesitate to contact HELUKABEL Vietnam's team of engineers for detailed answers.
